Wisycom MPR60-Wideband True Diversity IEM/IFB Receiver
Wisycom MPR60-Wideband True Diversity IEM/IFB Receiver
PRE-ORDERS NOW AVAILABLE
Designed for live events, high-end theater, and large-scale Houses of Worship, as well as Broadcast and Location Sound, the MPR60 is your solution for uncompromised performance.
Technical Specifications
Frequency ranges: 470-800 + 823-832 + 940-960 +1240-1260 MHZ
Switchable channels: 2400, managed in 40 groups of 60 frequencies completely user customizable
Switching-window: 379 MHz
Frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step width)
Frequency error: < ± 2.5 ppm, within the rated temperature range
Diversity technique: True diversity
Modulation:
IEM Stereo Multiplex, 200kHz RF BW, compatible with MTK982, MTK952
IFB Wideband 200kHz RF BW, compatible with Microphones (MTP60, MTP61, MTH610) WB modulation
IFB Narrowband 100kHz RF BW, compatible with Microphones (MTP60, MTP61, MTH610) NB modulation
Peak deviation:
±48 kHz (IEM Stereo)
±56 kHz (IFB Wideband)
±35 kHz (IFB Narrowband)
“A” / “B” antenna inputs: SSMA connectors
Antenna input impedance: 50 ohm (SWR < 1:2; typ. 1:1.4)
Sensitivity: 2 μV (6 dBμV), for SND/N > 52 dB; in the whole switching-window*
Spurious emissions: < 2 nW (typical = 0.1 pW)
Noise Reduction system: ENS - Wisycom sound optimized
AF bandwidth:
30 Hz - 15 kHz (IEM Stereo)
45 Hz - 20 kHz (IFB Wideband) 45 Hz - 17 kHz (IFB Narrowband)
Frequency response: ± 0.5 dB in the 30 Hz ÷ 15 kHz range
Distortion: 0.3 % typical
SND/D ratio: 90 dB typical*
Stereo separation: > 60 dB

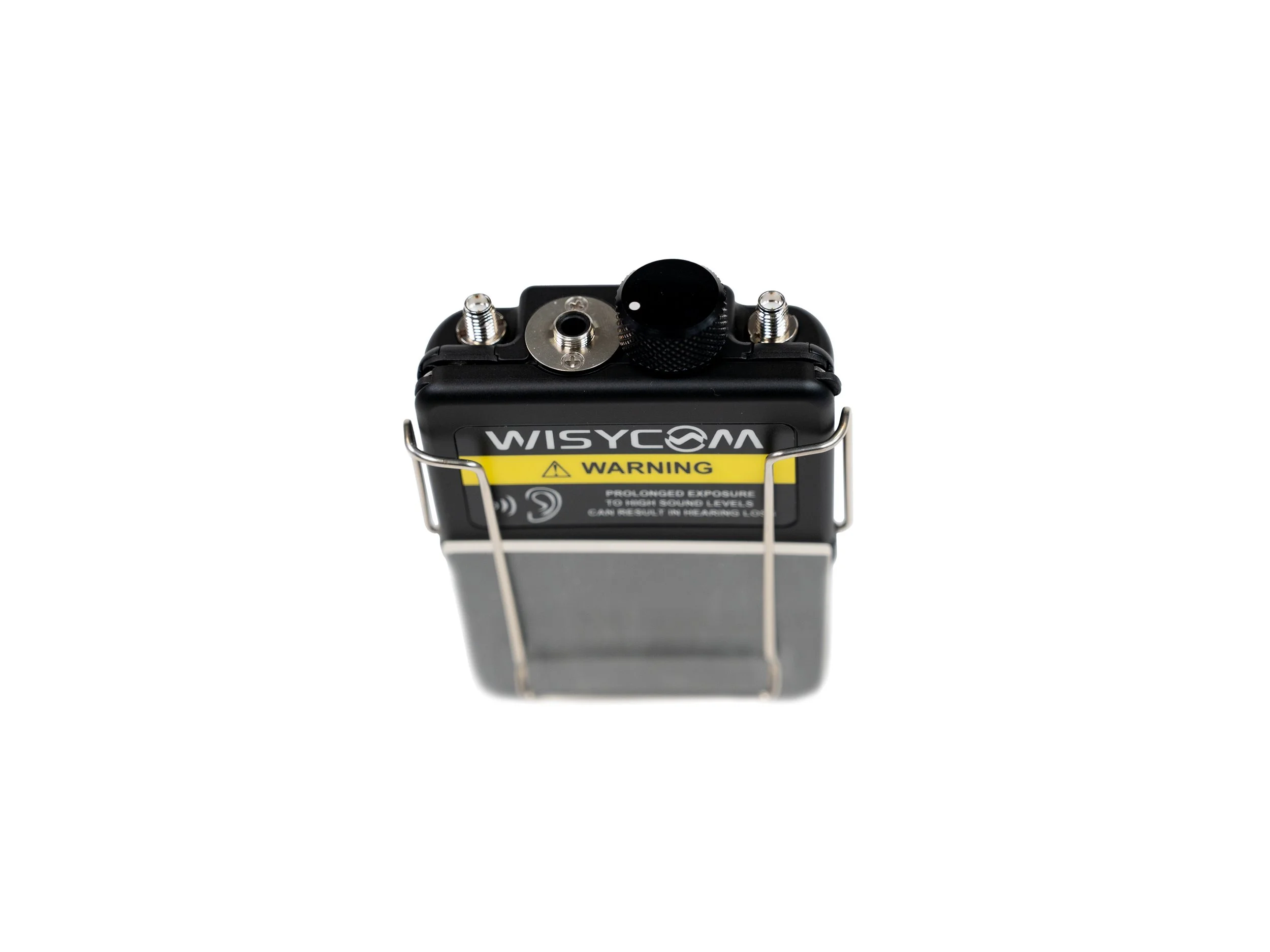

Headphone-output: Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread), 2 x 125 mW @ 16 Ohm

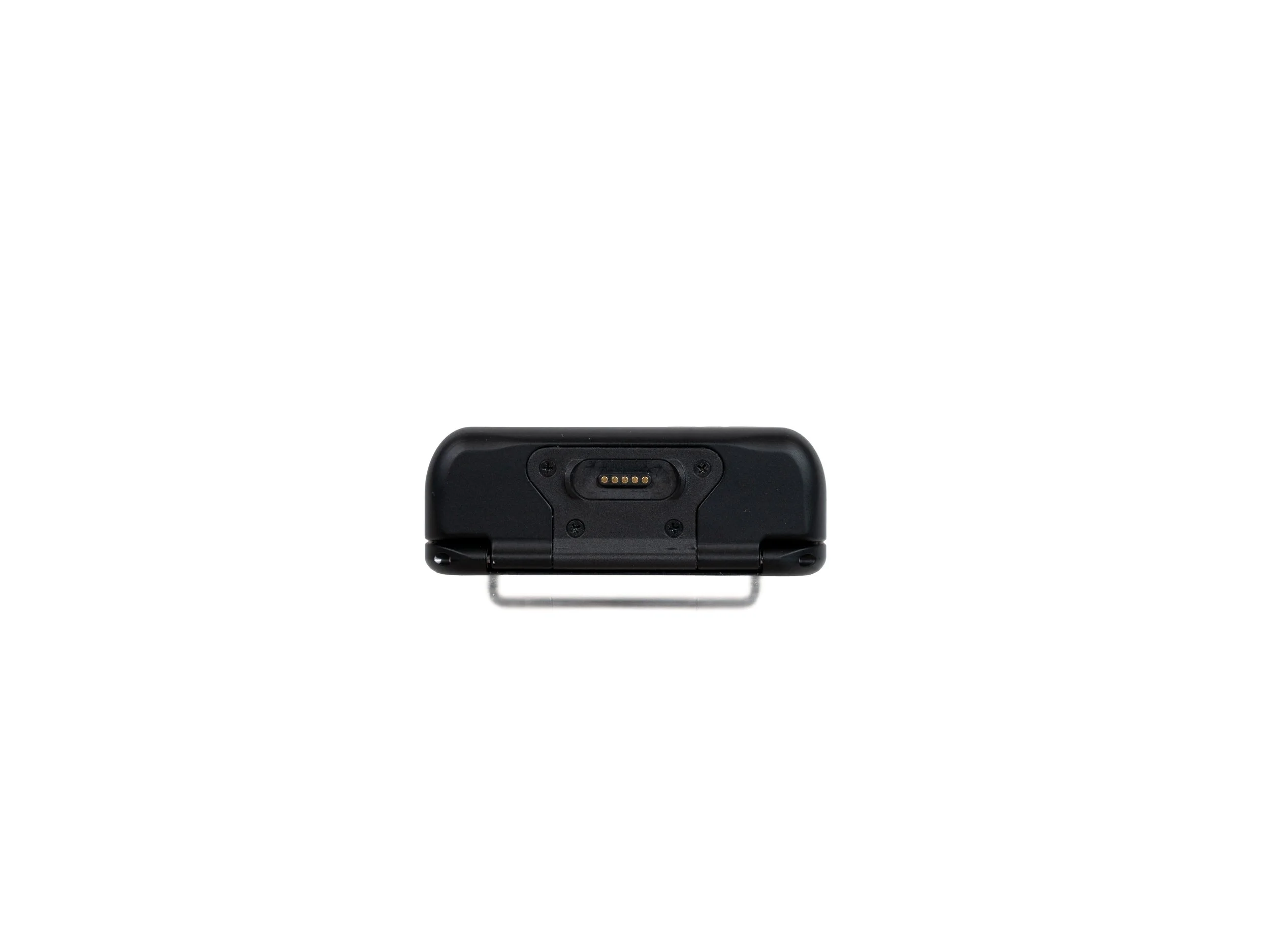

Managing interface: Remote control interface (Bluetooth and LoRa) and proprietary waterproof magnetic connector 5 pin (USB HS +power)
LED: 2 RGB LEDs (red, green and blue) for audio, RF and battery status
Display: Graphic high resolution display 180x350 px
Powering: 2 x IEC-LR6 1.5V size-AA alkaline or rechargeable elements
Battery life: Approx. 3.5 hours (alkaline batteries), 6.5 hours (LBPXL lithium batteries)
Temperature range: -10 ÷ + 55 °C
Dimensions: 93.3mm x 61mm x 22.4mm (HxWxD)
Weight: Approx. 140 g (without battery)
* RMS value, A-weighted, 22 Hz / 22 KHz, and referred to the peak deviation
DETAILS
This receiver features a real TRUE DIVERSITY configuration offering true freedom with unmatched frequency agility.
Audio processing can be Stereo, Mono IFB Wideband or Mono IFB Narrowband selectable by
the user.

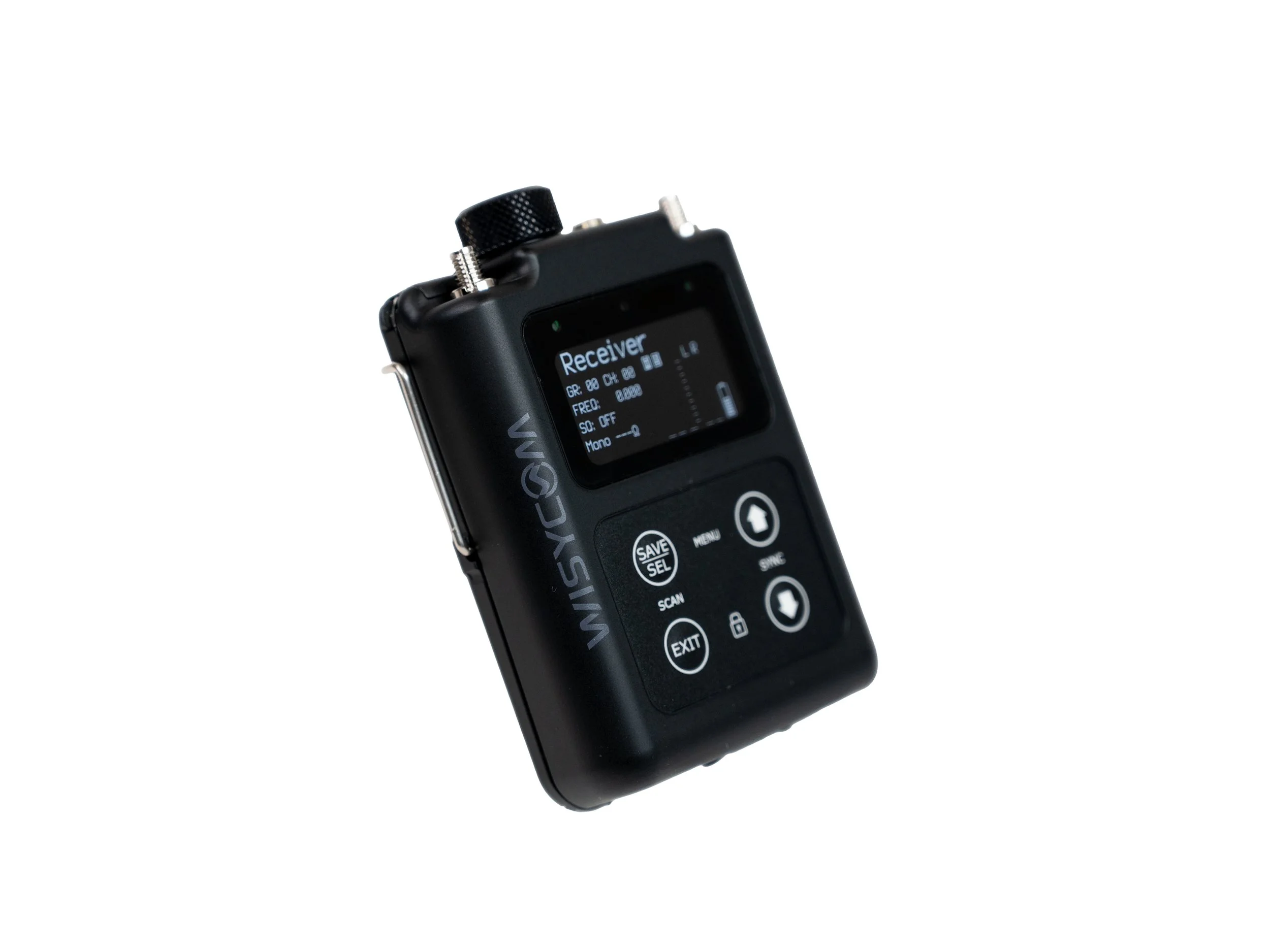

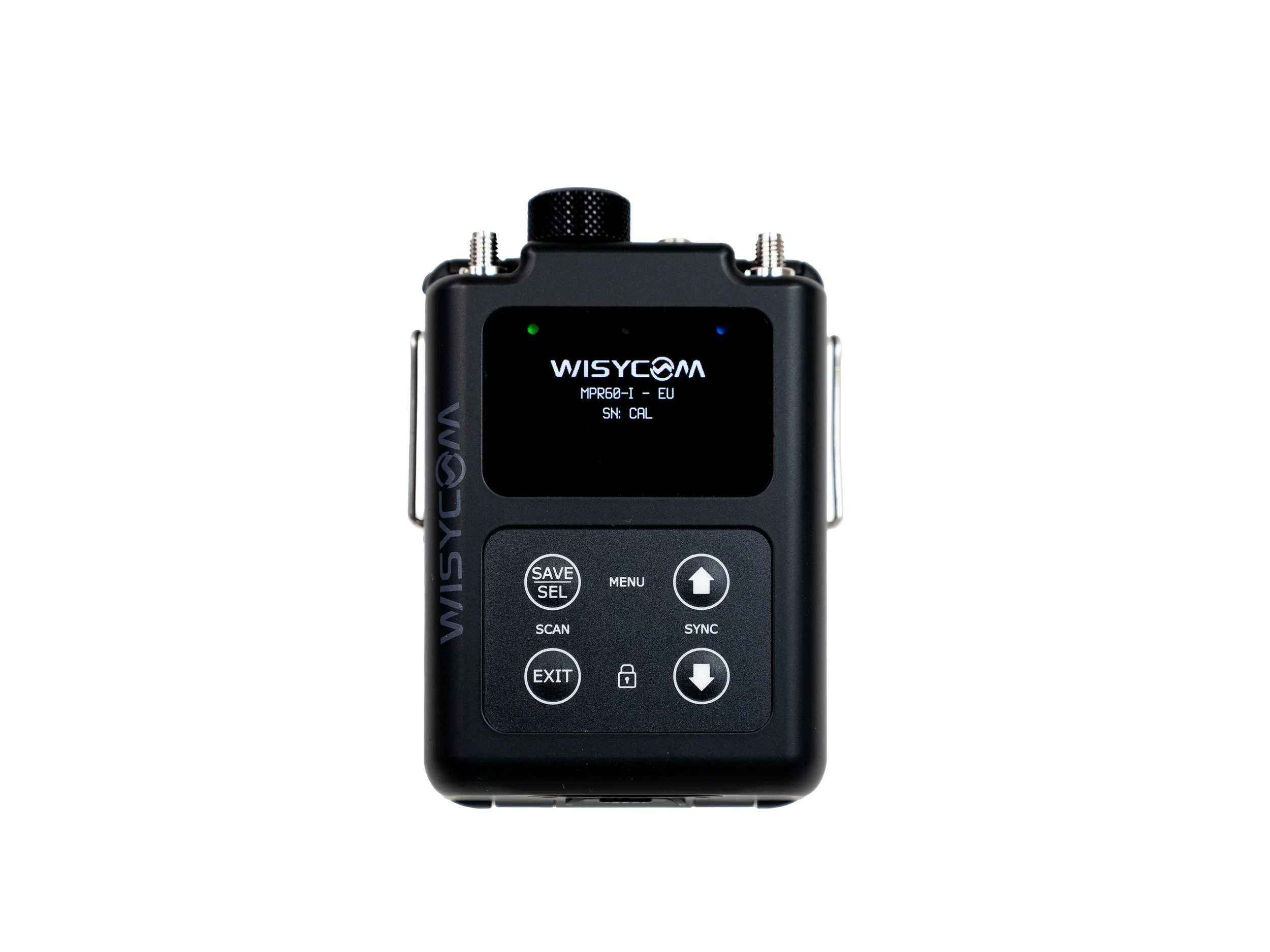

Very easy and versatile thanks to its OLED display, navigation button controls and automatic scan.
FEATURES
Wideband Frequency Agility: 470-800, 823-832, 940-960, 1240-1260 MHz bands for
maximum flexibility
Superior RF Efficiency & Robustness: superior with 400 kHz equidistance in IEM mode
Automatic Audio Power Limitation: Intelligently adjusts the output control by measuring
the impedance of the in-ear headphones
Prepared for Remote Control: Future-proof your workflow
Exceptional Audio Quality & Channel Separation (>60 dB)
True Diversity Reception
Easy to Read Display – even in sunlight
Three Working Modes: IEM Stereo Multiplex, IFB wideband, IFB narrow band
Noise Squelch Protection (IFB mode): looks at the quality of the signal
Tone Squelch Detection (IFB mode): for full compatibility with Wisycom transmitters
Easy to Service: Easily replaceable RF connector via special tool
