IEM

Lectrosonics IEM Systems

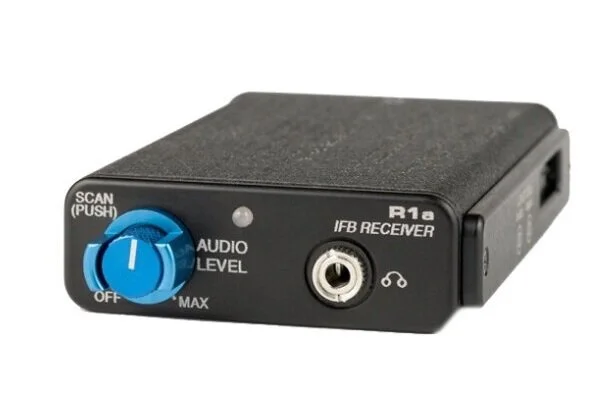

Lectrosonics Synthesized UHF Belt-Pack IFB-R1a Receiver

Wireless IFB (interruptible fold back) systems are used for talent cueing and crew communications in broadcast and motion picture production. In other cases, the IFB system is used by directors and other management to monitor program audio during a production. The IFB R1a receiver provides simplicity and flexibility in a package that is intuitive for untrained users to operate.

The receiver is housed in a rugged machined aluminum package. An optional spring-loaded belt clip (shown at right) provides a secure mounting on a wide variety of belts, pockets and fabrics. The belt clip is removable to reduce its size and allow mounting into other types of bags and belt worn mounting systems common in field production.

Key Features:

• Preset frequency can be set without power or transmitter signal

• Scan mode stores up to five additional frequencies

• Multi-color LED and rotary control for programming and operation

• High sensitivity for extended operating range indoors or outdoors

• Rugged machined aluminum housing

• Attached battery door

• 8 hours battery life (alkaline)

• 20 hours battery life (lithium)

• 256 frequencies in 100 kHz increments

• Microprocessor controlled

• Pilot tone squelch

• Compandor noise reduction

lectrosonics Frequency-Agile Compact IFBT4 Transmitter

The Lectrosonics IFBT4 UHF transmitter was designed for use in broadcast, motion picture, theater, and stage applications where extended operating range and high-quality audio are essential. The IFBT4 can be used as a stand-alone device or patched directly into popular intercom systems.

Lectrosonics Digital Hybrid Wireless™ systems overcome channel noise in a dramatically new way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded information via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor, but a technique that can be accomplished only in the digital domain, even though the inputs and outputs are analog.

Because it uses an analog FM link, Digital Hybrid Wireless™ enjoys all the benefits of conventional FM wireless systems, such as excellent range, efficient use of RF spectrum, and resistance to interference. However, unlike conventional FM systems, it does away with the analog compandor and its artifacts.

Microprocessor control provides user-friendly operation and eliminates transients at turn-on and turn-off. The transmitter output is muted in the TUNE mode to avoid generating interference in other wireless systems while scrolling up and down to change frequencies.

Key FEATURES:

• Digital Hybrid Wireless™ technology

• Up to 256 UHF frequencies in 100kHz steps

• Microprocessor controlled operation

• 250 mW power output for long range use (50 mW for export versions)

• Pilot tone squelch control

• Multi-use XLR input jack

• Built-in microphone preamp

• DIP switch programmable intercom input

• Tx mute for frequency scrolling

• Multi-function LCD display

• Compact size for use anywhere

• Rugged machined aluminum construction

Wisycom IEM Systems

Wisycom MPR50-IEM Wideband Receiver

MPR50 is a compact true diversity receiver designed for professional in-ear monitoring applications, featuring a real TRUE DIVERSITY configuration along with a unique wide-band tuning range up to 232 MHz.

The output audio stage is especially design to have maximum audio peak-dynamic of 200 mWatt.

Key FEATURES:

• Up to 232 MHz bandwidth in 470/798 MHz range

• TRUE DIVERSITY RECEIVER with 2 whip antennas

• 200 mW peak audio power

• Separate release/attack compander

• Miniature design with 2 AA battery pack integrated (body-pack form factor) or rechargeable lithium pack

• Easy to use thanks to an OLED display

• Dedicated function buttons & frequency scan function

• Automatic receiver programming thru infrared and micro-USB

• FM Stereo mode for MPX decoding with mix-mode function

• FM IFB mode with NARROW-BAND modulation to enhance noise immunity and coverage (SW selectable)

• Flexible Battery management
  -2 AA NiMH or Alkaline
  -C3-V3 battery pack
  -KLIC 8000 or CR-V3R lithium (i.e. DR9708 Duracell)
  -Charge with dedicated charger or integrated micro-usb-B connector.

Wisycom MTK 952 Wideband Dual Transmitter

MTK952 is a versatile dual transmitter capable of working in a huge UHF bandwidth and of generating any kind of narrow-band modulations, with very high quality and low spurious emissions.

Options:

DC: DC power supply (10-16VDC)

MS: Master Slave configuration for iso-frequency network

Key FEATURES:

• 330 MHz Bandwidth

• Direct Digital Synthesis (DDS) of signal for the highest flexibility and quality (> 70 dB stereo separation)

• Stereo, mono, intercom audio modulation

• DSP audio processing (40bit floating point / 2Gflops) with multi-companding

• Low interference output stage with wideband intermodulation phase cancellation

• 2400 user-defined frequencies (40 group by 60 freq.)

• Analogue & digital input (AES3)

• Output power up to 2 Watt (-2W0 option)

• Redundant power supply 230/110 Vac & 12 VDC (DC is optional)

• SWR (Stationary Wave Ratio) sensing on antenna outputs

• Reference In/Out for iso-frequency transmission (with option MS)

Phonak VHF IEM Systems

Phonak Invisity Flex In-Ear Receiver

The Phonak Invisity Flex In-Ear is designed for film, stage, television production or any situation where discreet, hidden communication is required.

The Invisity Flex is a single frequency, programmable, narrow-band RF receiver. Programmable frequencies fall within a 7mHz band with a choice of 6 ranges.

A rotating switch built into the housing of the Invisity Flex allows on/off and (2) volume settings. It’s ergonomic design ensures greater comfort for longer wear periods.

Battery life is estimated at 13 hours of continuous use.

Listen Tech Stationary RF Transmitter LT-800-216-01

Offering outstanding audio clarity, digital signal strength, and 57 selectable channels, the LT-800-216 is a perfect RF transmitter choice for a wide range of applications. Connected to your main audio system, the LT-800-216 broadcasts strong, reliable audio to both belt pack receivers and stationary receivers, ideal for providing listeners with the best possible assistive listening experience.

Key Features:

• Look & Listen (TM) LCD display for quick channel, programming, and channel lock status information

• Balanced and unbalanced audio inputs allow for use with any audio source

• Built-in auto processor optimizes audio (voice or music) prior to transmission

• 57 available, selectable channels

• VU level meter and test tone for simple installation and set up
