Intercom Systems

Large-Scale Made Easy.

The FSII-BASE-II is a base station for the wireless FreeSpeak II 1.9GHz and 2.4GHz active transceiver and beltpacks with four 2-wire analog partyline connections, four 4-wire audio connections and four digital displays with soft keys. The base station can operate  a mix of up to 25 1.9GHz  and/or 2.4 GHz beltpacks on a single system. The base station can be used in Main Station mode with Talk and Call soft keys or as a Headset Station for communication and monitoring from the panel. The base station's digital displays allow easy system configuration directly from the base station or through the browser-based Core Configuration Manager tool.

Key Features and Benefits:

• Routing and configuration of up to 25 FSII beltpacks

• Browser-based configuration tool

• Four 2-wire ports with call signal, auto-nulling

• Four 4-wire ports with call signal

• One dry contact relays

• Multi-mode user interface with monitoring, setup and main station modes with assignable soft keys

• Dedicated front panel keys for remote mic kill, stage announce and all talk

• Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station

• Matrix and partyline configurations support up to 12 channels and/or groups

Clear-Com's five-channel, full-duplex FreeSpeak II 1.9 ghz digital beltpack was uniquely designed for the rigorous demands of large-scale operations and continuous communication use. Ergonomic form factor, intuitive operation, and a rugged housing make the beltpack ideal for extended use.

Key Features:

• Up to five communication routes per beltpack, each with a 5 or 10 character label

• Four programmable pushbuttons, two rotary encoders and a reply button

• Menu driven display, which can be partially or completely restricted

• Secure system – beltpacks are registered to a particular base station or Matrix

• Internal antenna – no antenna breakage or damage

• Long battery usage – typically 18 hours of continuous talk time

• Two battery options – rechargeable Li-Ion cells or disposable Alkaline AA Batteries

• Drop-in charging port with built-in USB battery and beltpack charging capability

• Strong metallic beltclip and shoulder strap points

• Over-the-air beltpack easy registration and regionalization

• Real-time monitoring of battery per beltpack

• “Listen Again” audio memory to replay last 15 seconds of audio

• Technician’s flash light on bottomes here

Clear-Com's 2-in-one, 5-way battery and beltpack charger. Charges up to five beltpacks or five back-up batteries simultaneously. Ask for extra BAT60 batteries with your next FreeSpeak II rental to keep everyone charged up throughout the day.

The FSII-SPL is an antenna splitter that connects multiple FreeSpeak II transciever antennas to an Eclipse-HX matrix (via an E-QUE-HX frame card) or to a FreeSpeak II base station. The splitter provides up to 5 antenna feeds from one antenna port. An SFP fiber slot allows a fiber link between a FSII-BASE-II base station and splitter (base-to-splitter) or it can be used as a fiber bridge on legacy FreeSpeak II base stations and Eclipse HX matrix frames (splitter-to-splitter).

Key Features:

• Provides up to 5 FSII transceiver antenna feeds on one antenna port on a FSII-BASE-II base station or E-QUE-HX frame card

• SFP fiber slot for fiber link to FSII-BASE-II or as a fiber bridge between FSII-BASE-II stations and Eclipse HX frames

• Supports both multi-mode and single-mode fiber

• Configure settings using DIP switches

• IP-63 water resistance for outdoor use

• LED status indicator on front and back

• Mic stand or wall mount orientation (metric and imperial threads)

1.89GHz-1.93GHz* Band Active Transceiver Antenna allows users to freely roam around a facility while staying connected to the base station. Each Active Antenna can create a coverage zone of up to 1,475 feet. One Active Antenna supports up to 5 beltpacks with the ability of adding more if roaming or more beltpack support is required. Up to 10 remote Active Antennas can be strategically placed to cover a wide area.  Each active transceiver antenna is IP65 rated for water and dust resistance and has a mount for microphone stands, allowing use and placement in virtually any environment. Unique to the FreeSpeak II system, both 1.9GHz and 2.4GHz beltpacks and active transceiver antennas can co-operate on the same system, increasing both the quantity of users as well as the cell roaming area.

ANTENNA FEATURES:

• Up to 10 Active Antennas can be connected to one system

• Up to 1,475 ft of coverage area per antenna

• 1.9GHz and 2.4GHz antennas can co-operate on the same system

• IP65 rated for water and dust resistance

• Microphone stand mounting

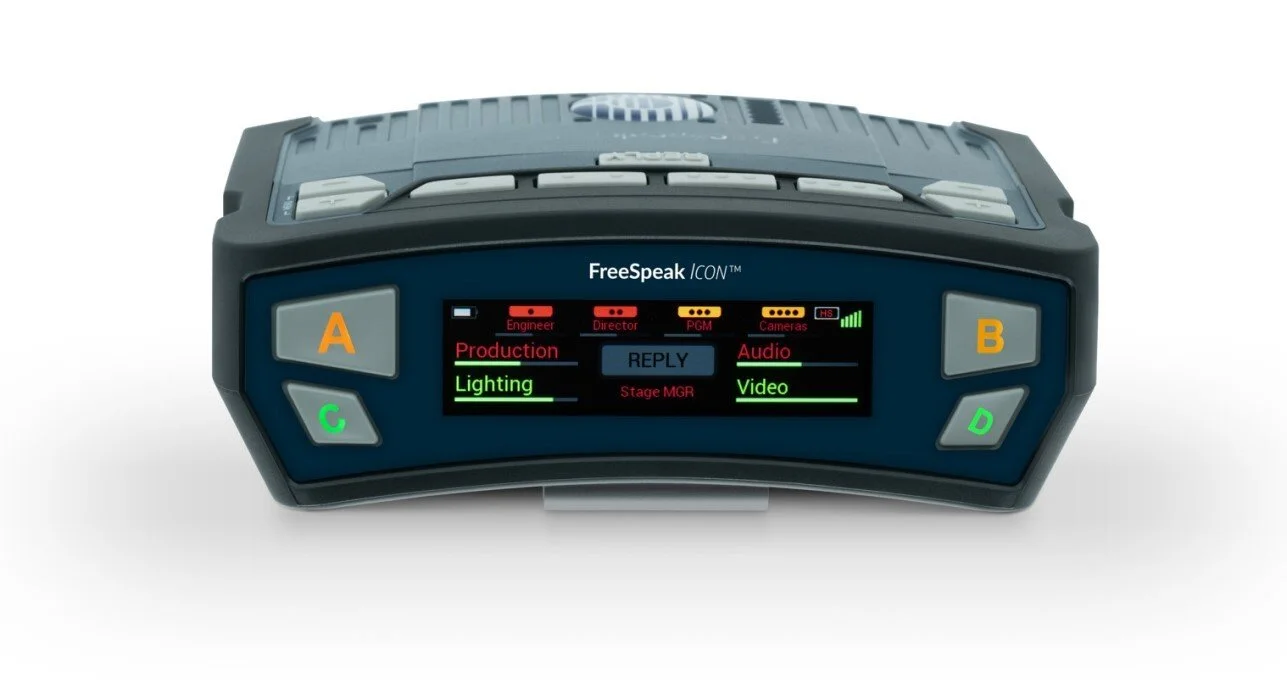

The FSIC-BP19 is a rugged, water-resistant multi-channel beltpack that operates in the 1.9 GHz frequency range, providing minimal latency, full-duplex connectivity, and highly comprehensible audio for usage in the most demanding settings. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, a dedicated master volume control, and a built-in mic and speaker station mode. The beltpack can be deployed on the same wireless network as the existing FreeSpeak II 1.9 GHz beltpack giving users two devices to utilize.

Key Features:

• Functions with FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards

• Supports up to 200 beltpacks on a single system (see Capacity Chart for details)

• TFT color display (120x480)

• 4 top buttons with individual level control

• 5 additional programmable buttons

• Rotary controls on both sides and up/down level controls

• Main volume control on bottom

• BLE (Bluetooth Low Energy) Radio

• Supports Bluetooth 5.3

• Built-in mic and speaker

• Built-in flashlight

• Drop-in and USB-C charging

• 1.9 GHz radio frequency

• Compatible with FSII E1 and IP transceivers

• 10 beltpacks per transceiver with the FSII IPT

• Low latency audio: < 35ms (70ms beltpack to beltpack)

• USB-C port for beltpack pairing and firmware updates and charging

• IP54 rating for wet and dusty conditions

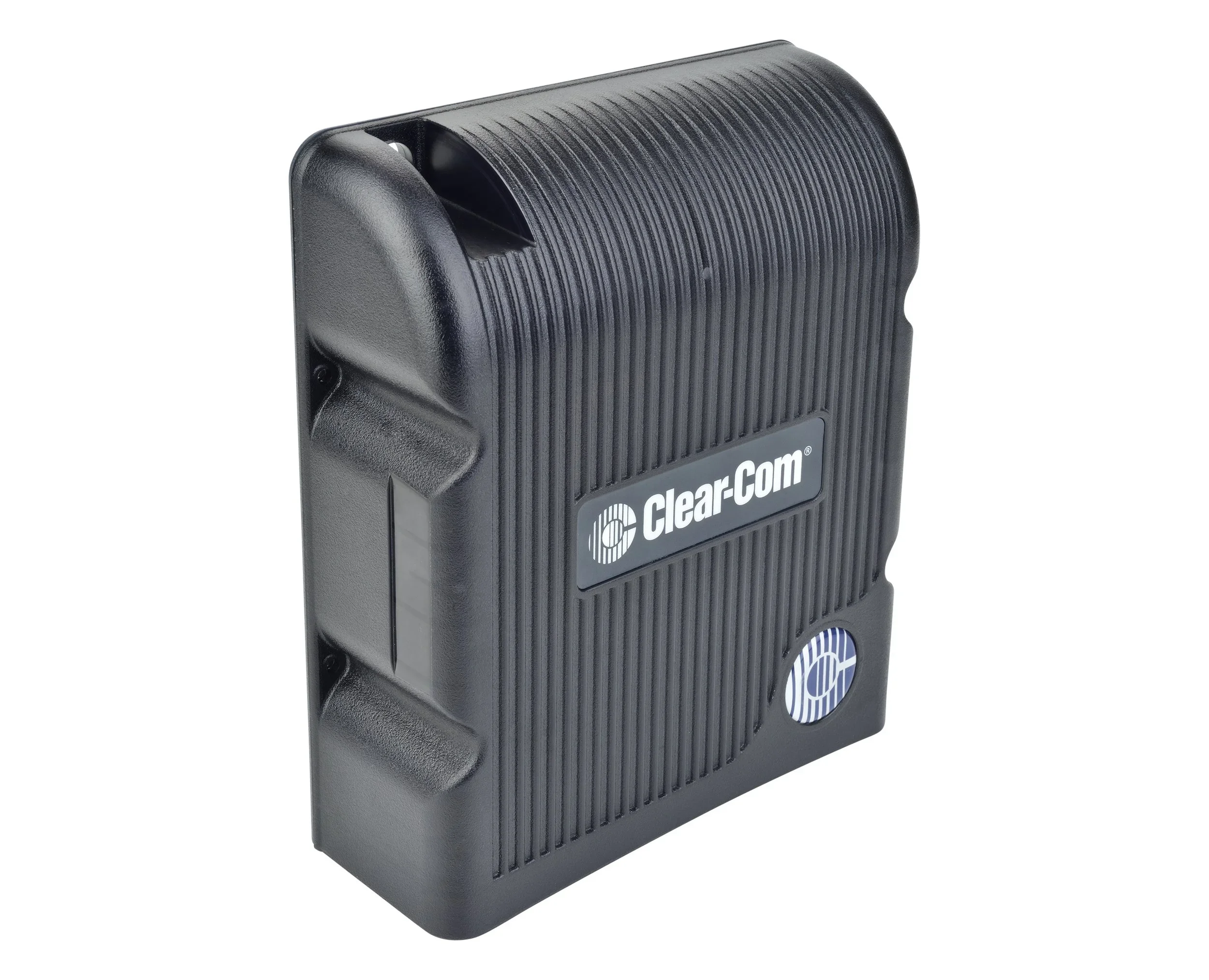

The FreeSpeak FSII-TCVR-IP-19 is an active high-capacity IP antenna transceiver designed to support the RF coverage and capacity of FreeSpeakII and Icon 1.9GHz wireless beltpacks. Compatible with Eclipse® HX with E-IPA interface card(s), Arcadia® Central Station, and FreeSpeak Edge Base Station hosts, it connects via an AES67 capable IP network where transceivers can be centrally discovered and paired.

Key Features:

• Supports 10 FSII 1.9GHz beltpacks per transceiver

• Up to 64 transceivers supported on Eclipse HX matrix system

• IP53 - Protected from limited dust and water ingress @ 60° from

  vertical

• Mic stand or wall mount orientation (metric and imperial threads)

The HXII-BP is a rugged and ergonomically designed 2-channel digital partyline beltpack. A beltpack can have access to two of any twenty-four available system channels over a single shielded twisted-pair cable or Power-over-Ethernet (PoE).

Key Features:

• 2-channel full-duplex digital beltpack

• Binaural listening on HXII-BP-X5 beltpacks

• Power and audio over a Power-over-Ethernet (PoE) or single XLR cable

• Access to any 2 of up to 24 available channels on each beltpack

• Program audio with separate program level control

• Stacked key addresses multiple channels

• USB flasher mode

• USB Micro-AB port

• Pushbutton menu access

• 10-character yellow OLED label display

• XLR-4M or XLR-5F headset jack

• Rugged, light-weight poly-carbonate casing

• IP-53 rated for dust and water ingress

• Add up to 24 ports of audio I/O per Main Station by connecting to LQ Series

• Quickly connect Agent-IC mobile clients with existing HelixNet users via connected LQ Series devices

• Binaural listening on HXII-BP-X5 beltpacks

• SIP/VoIP calling from HelixNEt via LQ Series

This digital partyline solution from Clear-Com is the HRM-4X; a 1RU, 4-channel remote station that connects to the HMS-4X main station and other user stations using various cable types, including a single shielded twisted-pair cable. The HRM-4X provides access to four simultaneous channels of intercom communication, plus assignable program audio.

The HRM-4X has separate buttons to activate the headset or the gooseneck mic, with user controls including OLED displays, momentary/latching Talk button, Call button and rotary encoder level controls per channel. Access to channels and other functions are assignable through the menu or the Core Configuration Manager (CCM) browser-based tool*.

Features

• For use with the HMS-4X HelixNet main station

• Access to all networked channels of audio from main station

• Expand Main Station with Remote Stations to provide up to 24 keys in one location

• Select any 4 channels from up to 24 channels of audio

• Core Configuration Management (CCM) browser-based tool (with software v3.0 or higher)

• Large format yellow OLED, 10-character label displays

• Connects to main station over mic or Ethernet cable

• Powered by Powerline, PoE or AC/ DC adapter (universal)

• Rotary channel level controls

• Speaker and Program level controls

• Line/LAN Status indication

The HKB-2X is a 4-channel, two display with shift page, flush mount digital partyline headset and Speaker Station that connects to Helixnet Main or Remote Stations over a single shielded twisted-pair cable. The HKB-2X can be locally powered via an external power supply or third party Power-over-Ethernet (PoE) power source.

HKB-2X Key Features:

• For use with HelixNet main and remote stations

• Add up to 24 ports of audio I/O per Main Station by connecting to LQ Series

• Quickly connect Agent-IC mobile clients with existing HelixNet users via connected LQ Series devices

• Binaural listening on HXII-BP-X5 beltpacks

• SIP/VoIP calling from HelixNEt via LQ Series

• 4-channel, two display, digital networked partyline station

• Fits 4-gang standard electrical wall box (US ANSI/NEMA OS-1) or optional S-Mount enclosure

• Displays swivel up and down for best viewing

• Large format yellow OLED, 10-character label displays

• Connects to main station over mic or Ethernet cable

• Individual Partyline and Program Audio speaker levels with speaker mute

• Powered by Powerline, POE or AC/DC universal power adapter

The LQ-R4W8 enables the connections of 4-wire audio devices over LAN, WAN or Internet IP infrastructures in a 1RU panel. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card, adds Agent-IC mobile clients to Encore and HelixNet partyline systems, or SIP client connections over wireless networks. Connect up to 6 panels together to create standalone intercom groups. The LQ-R4W8 supports ECS, EHX and Drake 4000 II panels (4-wire + data).

Key Features:

• Eclipse HX connection via IVC-32-HX card over LAN, WAN or Internet

• Can remotely connect up to 8 IVC-32-HX ports per LQ device

• Supports up to 8 SIP client connections per LQ device (license required)

• Supports up to 8 Agent-IC clients per LQ device (license required)

• Connects to HelixNet via HLI-ET2 over LAN or WAN

• Connect up to 6 LQ devices together over LAN, WAN or Internet

• 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels

• Adjustable bandwidth on a per port basis

• Uses low-latency OPUS codec

• Browser-based CCM configuration software (PC, MAC, Tablet)

• DC power supply or PoE

Mobile app for remote access to LQ Series on iOS and Android smartphone, tablet, and wearable devices.

Agent-IC Virtual Mobile Client

• On: Android and iOS

• Large Talk & Listen buttons

• Swipe to Latch Gestures

• Global Key state and Audio Prescence indicators

• Easy download from Apple & Google App Stores

Virtual Mobile Client for Gen-IC & LQ

• (24) Keysets assignable to Channels: Listen, Talk, Call, Control Events, Remote Mic Kill

• Individual Keyset Listen Level Controls

• Reply for incoming Call Signals

• OS Notifications for incoming Call Signals

• LQ Interface Integration Options

• Slots for 2 CPU cards, 4 interface cards and 3 interface modules

• Up to 256 internal ports

• Dual PSUs for redundancy

• Dual cooling fans

• Alarms for frame temperature, external PCU failure and fan failure

• Front to rear LAN/Panel patch

• Front carrying handles for easy rack installation and extraction

• Fully compatible with Clear-Com V-Series Iris, V-Series, iStation, ICS panels and Agent-IC® mobile app

• Replaceable fan/alarm card

• Replaceable power card

• Supported by EHX software for configuration and management*

Eclipse HX-Median Features:

-6RU Card Frame

-Slots for 2 CPU cards, 7 interface cards and 8 interface modules

-Up to 448 internal ports

-Dual-redundant CPU-HX processors fitted as standard

-Dual-redundant power supplies fitted as standard

-Alarms: Frame temperature, PSU failure

-8 general purpose inputs and 8 relays

-Expandable to become a multi-frame system with redundant non-blocking fiber

-Intelligent trunking between systems over telecom lines (E1/T1), IP (LAN, WAN or Internet), Analog or MADI

-Seamless integration with FreeSpeak II and FreeSpeak Edge

-Fully-compatible with Clear-Com V-Series Iris and I-Series panels

-Supports EHX Software (Eclipse HX Configuration).

Users of Eclipse HX can access the central intercom system using various types of communications devices: hardware key panels, portable digital wireless beltpacks, mobile apps on smartphone/tablet devices, or integrated software client on a personal computer.

Available to Rent

• MVX-A16-HX 16 Port Interface

• E-QUE-HX Wireless Controller Interface

• E-MADI64-HX 64-Channel MADI Interface

• E-DANTE64-HX 64 Channel Dante Interface

• E-IPA-HX-64 up to 64 IP ports (endpoint connections) and additionally up to 64 FreeSpeak IP Transceivers

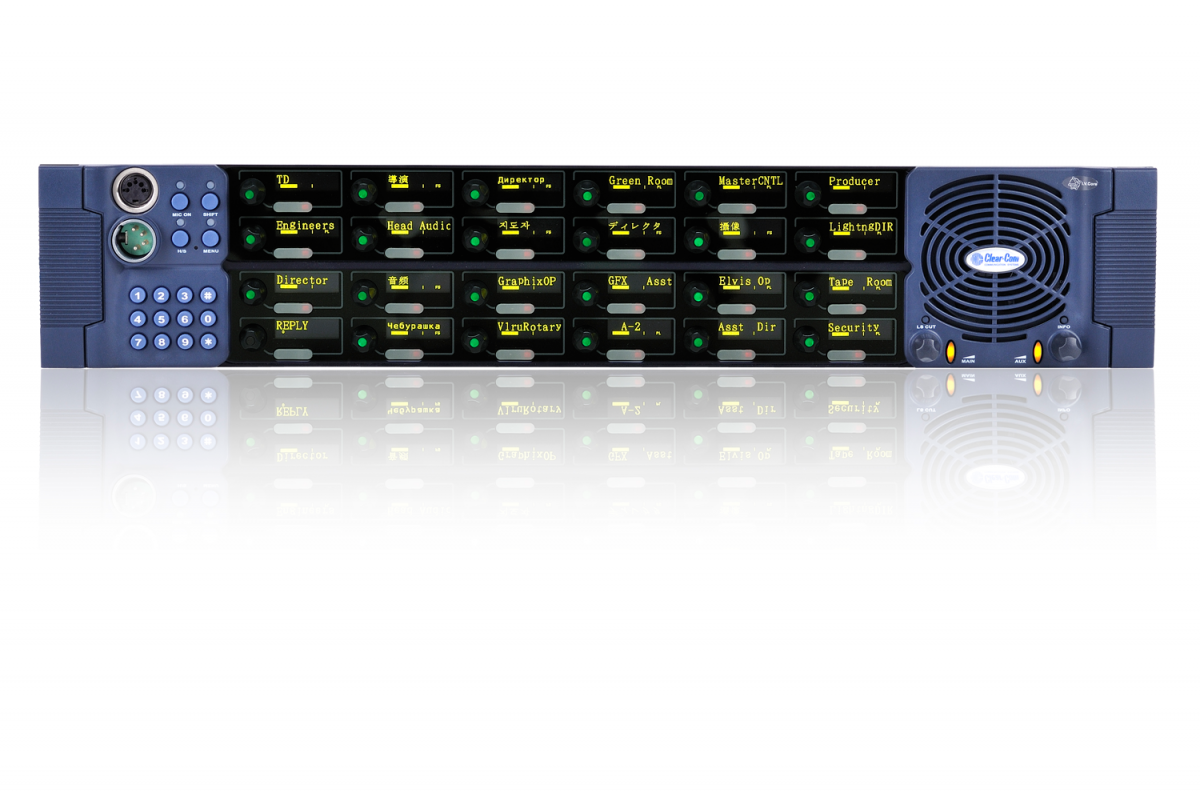

V12RD, V24RD or V32LD (4-pin)

• V-Series 12 (24, 36)-key 1RU Rotary Panel

• 12 (24,36) Talk pushbuttons and 12(24, 36) Listen rotary switches (1RU) for use with Eclipse HX matrix frames

• Individual rotary audio level controls for personal mixes

• Yellow OLEDs for better contrast and visibility

• Horizontal or vertical font display options

• Color-coded keys for easily identifiable color tallies

• Listen Again function to replay calls

• Fast key assign from pre-defined scroll lists and/or keypad

• International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic

• Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming

• Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces

• Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)

Agent-IC® is a mobile app for Eclipse® HX matrix devices providing remote intercom access from tablets, smartphones or smartwatches over wireless networks.

Agent-IC Virtual Mobile Client

• On: Android and iOS

• Large Talk & Listen buttons

• Swipe to Latch Gestures

• Global Key state and Audio Prescence indicators

• Easy download from Apple & Google App Stores

Virtual Mobile Client for Eclipse HX

• (23) Keysets assignable to: Partylines, Groups, IFB, Point-to-Point, Directs & Controls

• Individual Keyset Listen Level Controls

• Reply for Incoming Point-to-Points

• OS Notifications for Incoming Calls

The TW-47 is a stand-alone interface designed to connect a 2-way radio or walkie-talkie into a single channel of a standard Clear-Com, RTS, or compatible 2-wire party-line intercom system. It provides both audio connection and “push-to-talk” transmitter keying, using standard Call signals.

• Interfaces any 2-way radio to a single channel of Clear-Com, RTS or compatible system

• Accepts any walkie-talkie or radio with headset and microphone jacks

• Individual transmit and receive level controls

• Bi-color LED audio level indicator

• Powered by the intercom line

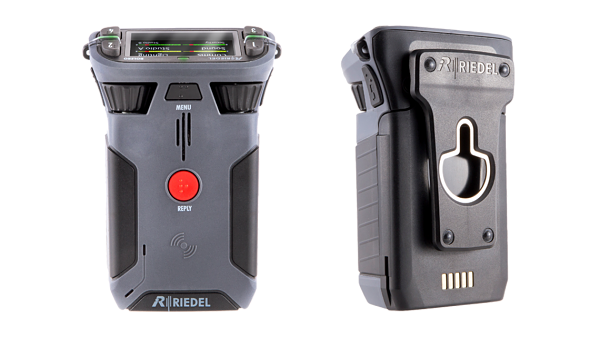

• Next-generation, digital, globally License-free, 1.9GHz DECT band

• Riedel-exclusive ADR receiver technology overcomes multipath issues

• Modern, efficient voice codec skimps on power – extending battery life

• Fully integrated with Artist for point-to-point comms and ease of use

• Up to six full-duplex channels plus convenient REPLY to last caller button

• Can be used as a beltpack, a portable desktop keypanel, or a 2-way radio

• Touch & Go registration

• Elegant, ergonomic, multi-material beltpacks that are built to survive almost anything

• Integrated Bluetooth technology for wireless headsets or use as a phone hybrid

• IP-65 environmental sealing

• Fully re-programmable FPGA to handle whatever future networks come about

• Intelligent use of bandwidth results in 10 beltpacks per antenna

• Standards-based, decentralized, AES67 IP-networked antennas

• System capacity of up to 100 antennas

• Desktop Control Panel; 16 keys

• Balanced analog line level inputs / outputs (2x / 2x)

• GPI opto-inputs /relay outputs on DB9 connectors (3x / 3x)

• Integrated power supply

• Control Panel; 28 keys; 19" / 2 RU

• Balanced analog line level inputs / outputs (2x / 2x)

• GPI opto-inputs /relay outputs on DB9 connectors (3x / 3x)

• Slot for future expansion modules

• Integrated power supply

• App-defined hardware: one hardware, multiple applications

• 32 innovative hybrid-lever keys with integrated rotary encoder

• High resolution touch screen displays and RGB LED rings

• 2 lines key label text plus individual icons and group colors

• Supports varied workflows (“Talk/Listen” and “Talk/Mute”)

• SMPTE-2110-30&31 (AES67)​

• NMOS IS-04 & IS-05 Connection Management​

• SMPTE 2022-7 (seamless redundancy) capable​

• Stereo full-range speakers

• Open platform for applications

• 19" Rackmount SmartPanel

• 18 keys

• 3 High-resolution, sunlight-readable displays

• Individual volume control

• Intuitive touch-screen UI

• Integrated power supply

• AES67, AVB, and AES3 connectivity

• Maximum matrix size: 1024 x 1024

• Hot swap of all modules

• Redundant power supplies

• Redundant node controller

• Max. ports per frame: 32

• Max. number of controller / client / GPI cards per frame: 2 / 4 / 1*

• 19" / 2 RU

 * Typical installation with one Controller Card slot or one Client Card slot used for a GPI Card.Item description

• AES67 Client Card

• Converts 8 Artist control key-panel ports into an IP AES67 stream and vice versa on RJ45 connector

• Digital Client Card AES

• Digital audio I/O-card (4x AES3) incl. Sample Rate Converter on RJ-45 for connection to digital mixing consoles, routers etc.

• Analog Client Card

• 8 transformer balanced (AIO-109 G2: electronically balanced) Analog 4-wire intercom ports (+18dBu in/out) on individual RJ-45/D-Sub25 for connection to equipment such as studio loudspeakers, cameras, telephone hybrids etc.

• Ethernet AVB Client Card (AVnu AVB)

• Converts 8 Artist control key-panel ports into an Ethernet AVB stream and vice versa, RJ45 connector / prepared for AES-67

• Digital Client Card CAT5

• 8 digital control key-panel ports on individual RJ-45 connectors for connection of Artist key panels using CAT5 computer cable

• Digital Client Card Coax

• 8 digital control key-panel ports on individual 75 Ohm BNC connectors for connection of Artist key panels using coax cable

• Dante-108 Client Card

• Converts 8 Artist matrix ports to Dante and vice versa

• Supports Dante redundancy

• 2xRJ-45 Ethernet 1000Base-T

• 1x BNC Wordclock Out

• MADI Client Card

• Cascadable to 64 channels on one MADI stream. Includes audio & panel data to remote panels or connect multi-channel audio to audio routers. Optical & Coax MADI links are supported.

• VoIP Client Card (EBU Tech 3347 compatible)

• Converts 8 Artist control key-panel ports into a compressed IP-stream and vice versa, SIP-based, RJ45 connector

Single-ear headset

Dual-ear headset

The BP-325 is a portable beltpack for use with RTS Two-Wire intercom systems. The BP-325 is a binaural (stereo) programmable two-channel beltpack with program-input capability. The BP-325 is for use with a dynamic microphone only.

Key Features:

• Call Function

• Headset

• Microphone Kill Detect

• Powered Externally

The SPK 300L is a desktop station with built-in speaker. It can be used as a "public" listen box via built in speaker or privately through the headset connection. Features channel select switch, call light, speaker on/off switch and dual-purpose portable desktop volume control. Packaged in a rugged all metal housing perfect for table-top operation.

The PS-20 features two- and four-channel operation, RTS monitoring, two-channel program input, audio linking, and three-mode operation: RTS 2-channel, RTS 4-channel and Clear-Com mode. It also has double the power output of the PS-31 per channel, which will increase the number of user stations and beltpacks which can be connected substantially.

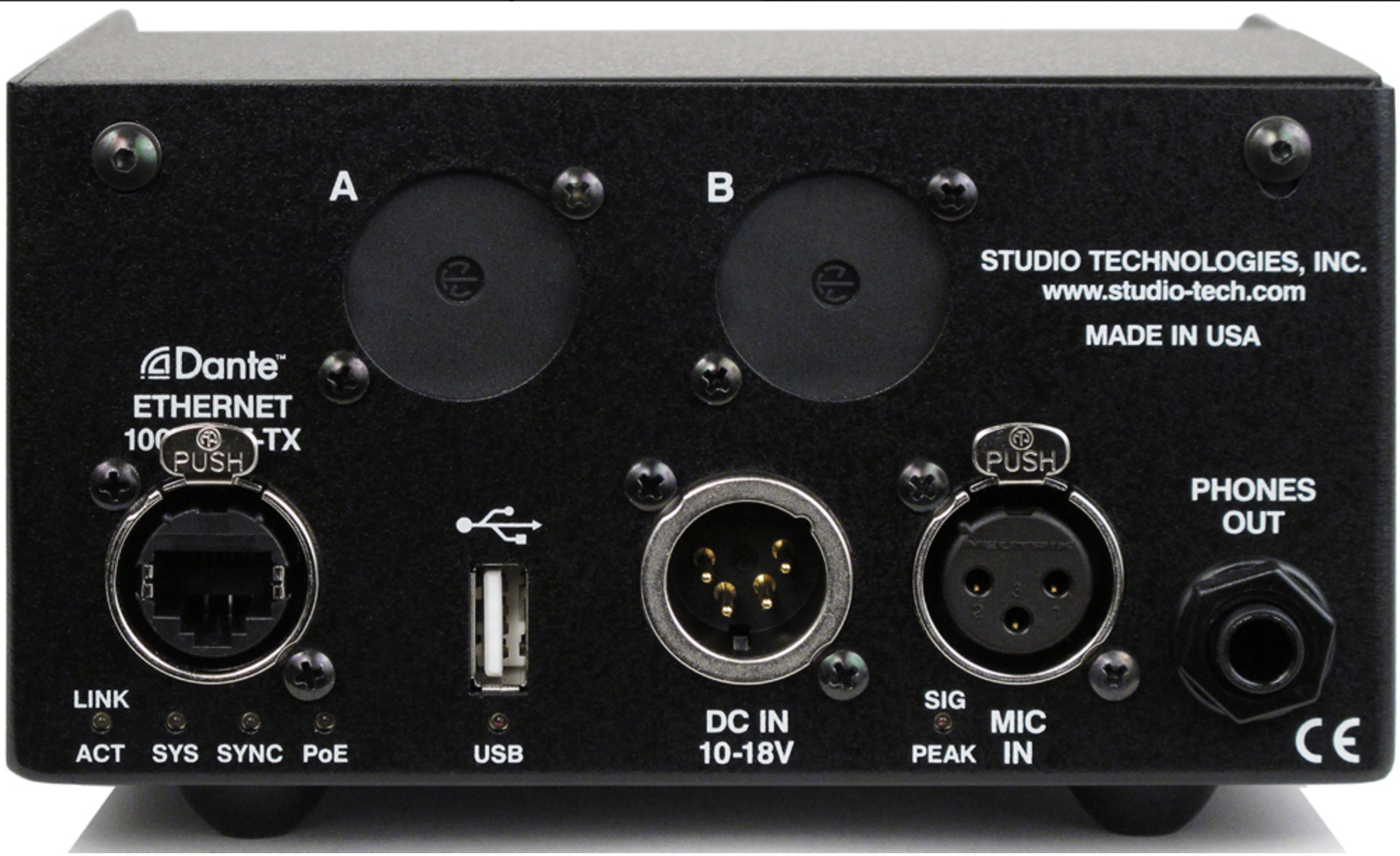

The Model 214 is compatible with the latest broadcast and audio system environments that use the Dante technology. An Ethernet connection with Power-over-Ethernet (PoE) power is all that's required to make the unit part of a sophisticated, networked audio system. Connect a microphone and pair of headphones (or a broadcast headset) and the installation is complete. Whether it's the on-air audio, the talkback audio, or the headphone cue feed, superior audio quality is always maintained.

Key Features

• Dante audio-over-Ethernet technology

• Extensive feature configuration

• Excellent audio quality

• Main, talkback, and tally tone/hot mic audio outputs

• Four headphone audio input channels

• PoE and 12 Vdc powering

• Headphone output with sidetone function

• Rugged, compact enclosure

• Configured using STcontroller application

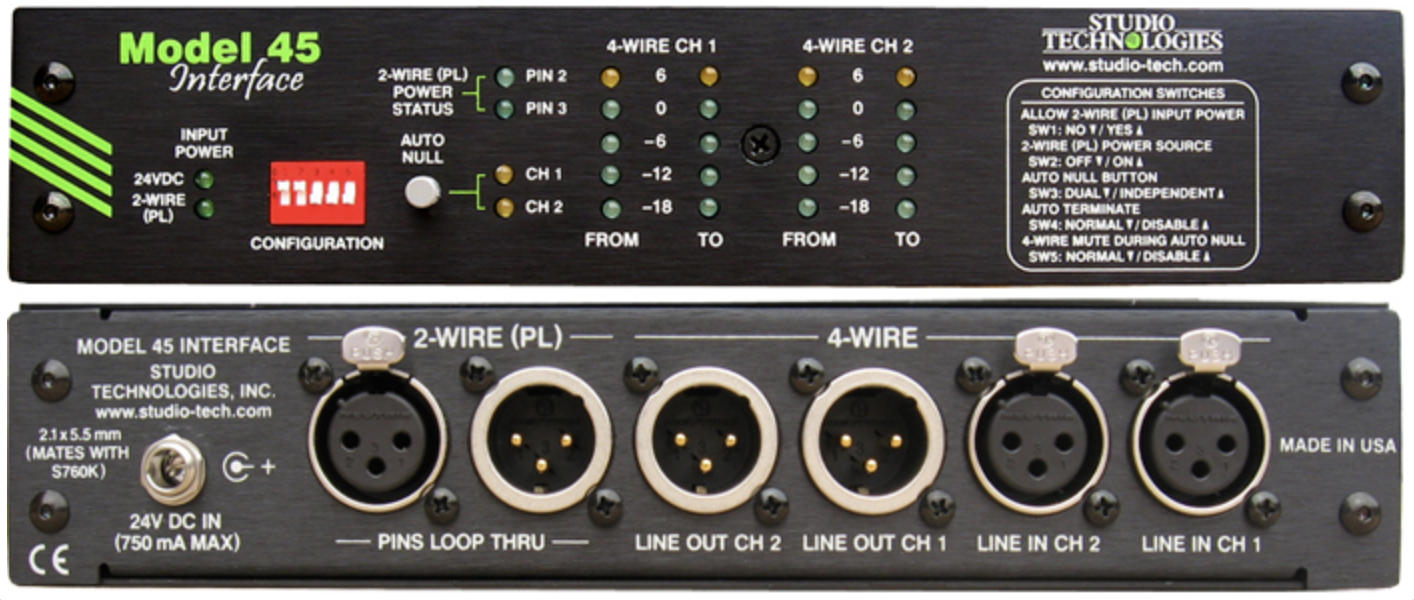

The Model 45 is designed to interface 2-wire full-duplex party-line (PL) intercom circuits with 4-wire audio circuits associated with matrix intercom systems. Applications for the Model 45 include television, sports and live-event broadcasting, theme park and theater installations, corporate AV, and industrial testing environments.

The unit provides one full-featured two-channel 2-wire-to-4-wire interface.

Model H8590 Pro Audio, single ear style, lightweight headset with advanced comfort and technology features. Provides crisp, clear communication and excellent sound quality. Single ear design is ideal for broadcast and camera personnel. Designed for broadcast and studio pro audio applications.

The Model H8530 Pro Audio is a 'surround-the-ear' type headset with advanced comfort and technology features. Provides crisp, clear communication and excellent sound quality. Ideal for broadcast, sound studio and front-of-house pro audio applications.
