RF Distribution
Wisycom RF Distribution
WISYCOM™ MAT244 Wideband Programmable Matrix Combiner
MAT244 is very flexible combiner especially designed to manage RF in a multi-site production environment.
MAT244 CAN:
– Route RF in several possible configurations
– Control antenna remotely,
– Manage attenuation/boost for the different areas,
– Monitor RF and interferences thru and integrated RF meter.
All of this can be done remotely thanks to an Ethernet interface and a very intuitive PC software.
MAT244 can be configure locally of by SW as a diversity combiner 4:2 with 6dB gain or in a non-diversity combiner 8:4 / 8:1
KEY FEATURES:
Combiner mode: diversity 4:2 / non-diversity 8:1 or 8:4 (SW configurable)
Wide bandwidth 150-840 MHz operation
Remote management and monitor of alarms thru Ethernet 10/100 base TX
Antenna booster supply toggled on each input independently
Voltage and current monitoring on each booster supply with alarm
Programmable attenuators on each inputs
Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)
Light window where the user can enter their own text to identify the 8 areas
Wisycom MAT288 Diversity Wideband Programmable Matrix Combiner
Model: MATT 288-X1

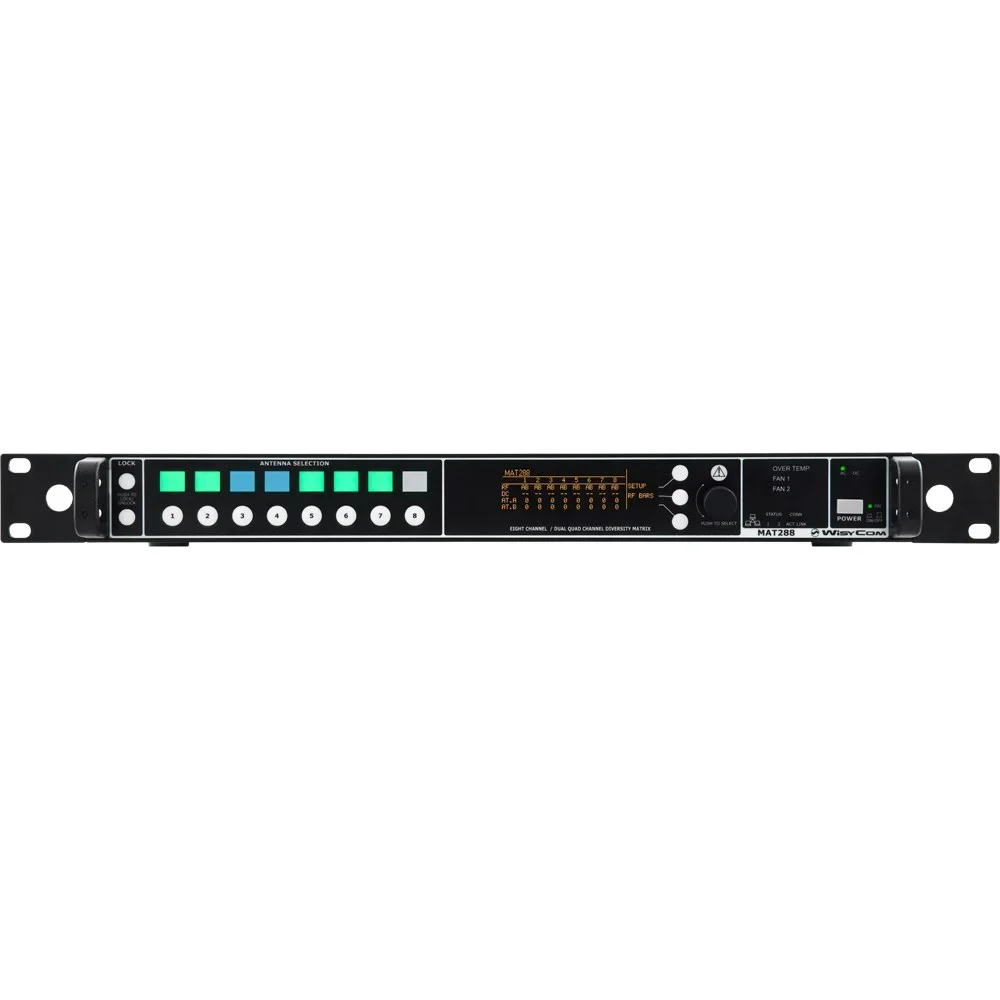

MAT 288 is a programmable diversity matrix combiner especially designed to manage RF in a multi-site production environment. This unique device allows you to combine RF coming from 8 areas (a couple of diversity feeds) on the fly thanks to a matrix of solid state switches. It is designed to have the greatest reliability, with a redundant power supply (AC and DC). All operations can be remote with Ethernet.
KEY Features:
Diversity combiner 8:1 or 8:4 or 2 x 4:2 (sw configurable)
Wide bandwidth 150-840 MHz operation
Redundant power supply, AC and DC powered
Remote management and monitor of alarms thru Ethernet 10/100 base TX
Antenna booster supply toggled on each input independently
Voltage and current monitoring on each booster supply with alarm
Programmable attenuators on each inputs
Remote boost control (for gain/bandwidth) with a bidirectional data link through coax (input BNCs)
Light window where users can enter their own text to identify 8 areas
Wisycom BFLT1/BFLR1 Portable RF Over Fiber Unit
Models: BFLT1-B-SC RF OVER FIBER TRANSMIT W/FILTER, SC/APC OPTICAL, BFLR1-B-SC RF OVER FIBER RECEIVER W/ FILTER, SC/APC OPTICAL
BFLT1/BFLR1 is a single RF over Fiber module with selectable filters and Bluetooth long range.
BFLT1 is equipped with an optical laser which trasform an RF signal to an optical signal.
BFLR1 is equipped with an photodiode which trasform an optical signal to an RFsignal.
Both the module BFLT1 and BFLR1 can work in
IFB mode: to send low power IFB/IEM signal over fiber to a remote area
ANT mode: to receive signal from an antenna placed on a remote area
KEY FEATURES:
Monitor & control through Bluetooth to adjust parameters in real time (Wisycom BT App)
Wide RF band: 170-1260 MHz
Operating voltage range: 9 ÷ 18 Vdc
2 RGB LEDs for RF overload and system status indication
Easy configuration thru an high contrast OLED white display and 4 key navigation buttons
BFLT1:
Antenna booster 12V, 150mA max
4mW (6dBm) optical laser to cover miles away
20 band pass filters and tunable filter 1MHz step software selectable to increase RF robustness
compatible with expansion board EXP3 and EXP2
BFLR1:
remote power supply from the RF connector (on ANT mode)
DC power for external amplifier 12V 200mA for PAW or LBP (on IFB mode)
Wisycom BFLT2/BFLR2 Double RF Over Fiber Unit
Models: BFL-T2_F1-M0-D1 DOUBLE RF OVER FIBER MODULE FOR USA USE, BFL-R2_M0-D1 DOUBLE RF OVER FIBER RECEIVER MODULE

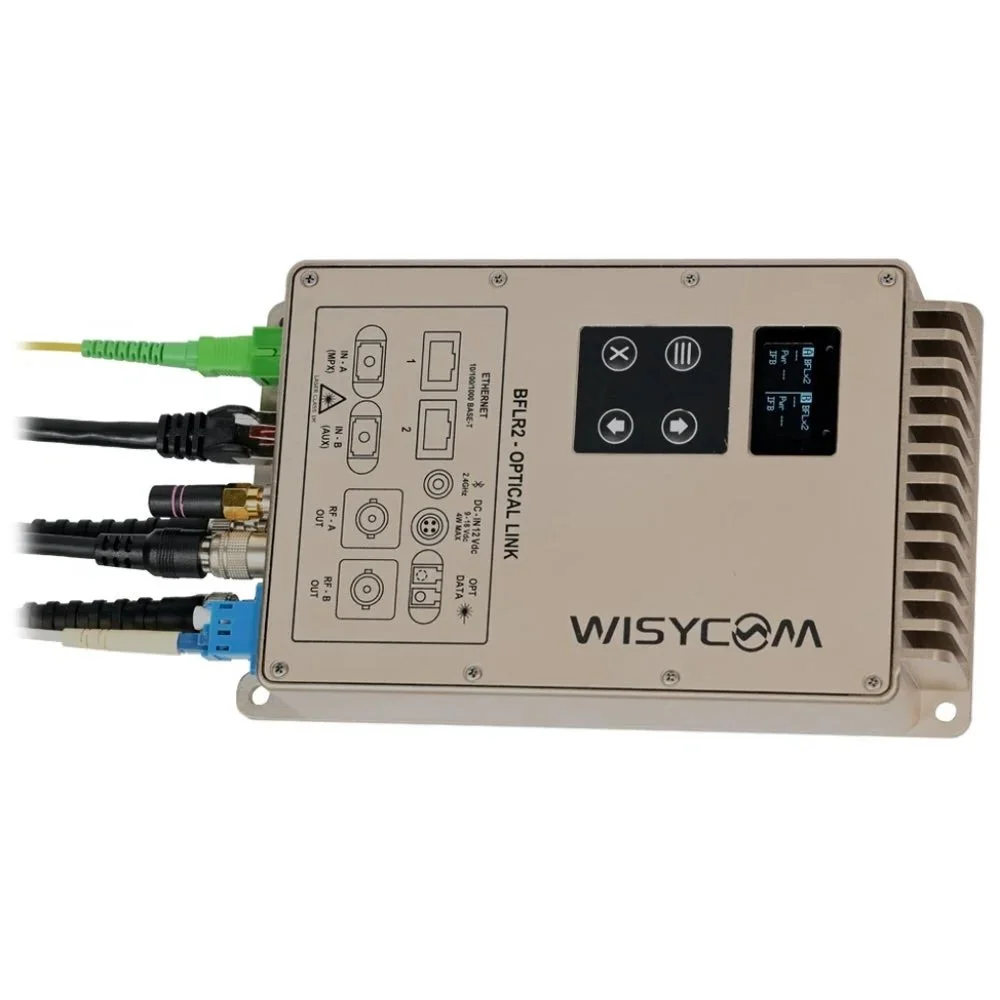

BFLx2 is a double RF over Fiber module with selectable filters and remote control interface.
BFL-T2 is equipped with two optical laser which trasform an RF signal to an optical signal.
BFL-R2 is equipped with two photodiode which trasform an optical signal to an RFsignal.
Both the models can work in
IFB mode: to send low power IFB/IEM signal over fiber to a remote area
ANT mode: to receive signal from an antenna placed on a remote area
KEY FEATURES:
Wide RF band: 170-1260 MHz
Easy configuration thru an high contrast OLED white display and 4 key navigation buttons
Monitor & control through Ethernet, Bluetooth and LoRa
Operating voltage range: 9 ÷ 18 Vdc
2 RGB LEDs for system status indication
BFL-T2:
6mW optical laser to cover miles away
Remote control of Wisycom antennas (LFA, ADFA and BFA)
20 band pass filters and 40 Mhz tunable filter software selectable to increase RF robustness
compatible with expansion board EXP3 (code: BFL-T2_M0-D1)
BFL-R2:
DC power for external amplifier 12V 200mA for PAW or LBP (on IFB mode)
WISYCOM™ LFA LDPA Antenna With Amplifier
LFA is a directional antenna with a unique design to achieve an ultra wide band of 410-1300 MHz, a compact and rugged form factor, and ample wind resistance reduction. LFA integrates a unique bank of filters along with a low-noise amplifier. Filters and gain can be easily setup locally through 4-key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable.
Using the latest Wisycom filter technology, LFA gives full control of RF zones and allows you to build flexible and remote controllable antenna systems.
Key Features:
Huge reception band: 410-1300 MHz
Remote controllable through coax cable
RF gain from -12 to +27 dBu (1 dB step)
Easy configuration through a TFT display
Tunable filter for interference control
Antenna off for RF zone disabling
Fixed band saw filter
Skeletal design for low wind loading
3 High Pass & 3 Low Pass filters
Waterproof with gasket sealing
WISYCOM™ ADN-ADB Omnidirectional Wideband Antenna
ADN/ADB wideband UHF omnidirectional antenna. Enhances reception providing approx. 3.2 dBi gain.
Key Features:
Working bandwidth of 430-1160 MHz
Sturdy metal body construction and epoxy protection on cable joints
High Performance optimized 3.2dB gain
WISYCOM™ ADFA Wideband Omnidirectional Active Antenna with remote controlled filters
ADFA is an omnidirectional antenna with a unique design to achieve an ultrawideband of 430 -1160 MHz.
ADFA integrate a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable.
Using the latest Wisycom filter technology, ADFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems.
Key Features:
Huge reception band: 430-1160 MHz
Remote controllable thru coax cable (with MAT244/MAT288/SPL2208/SPL2216)
RF gain from -12 to +27 dBu (1 dB step)
Easy configuration thru a TFT display
Tunable filter for interference control
Antenna off for RF zone disabling
Fixed band saw filter
3 High Pass & 3 Low Pass filters
Waterproof with gasket sealing
Sennheiser RF Distribution
Sennheiser A 5000-CP passive antenna
The A 5000-CP passive antenna provides an optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum.
The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems.
Key Features:
High Gain
Minimized Multipath - minimizes variations in signa strength, almost eliminating multipath problems.
Broadband
Professional Wireless Systems
Professional Wireless Systems VX-4/3Z VHF TRANSMIT ANTENNA COMBINER [3 ZONES, 4 INPUTS]
From worldwide broadcast events like the Super Bowl to ensuring the Golf Channel studios function seamlessly, Professional Wireless Systems manufactures equipment and designs & deploys RF systems which provide ultimate confidence since 1992.
Combines the input of up to four VHF RF IFB or Intercom transmits into a single output antenna.
