Wisycom MATF RF over Fiber Programmable Matrix/Combiner
Wisycom MATF RF over Fiber Programmable Matrix/Combiner
PRE-ORDERS NOW AVAILABLE
**Call for Pricing**
Relase Date: TBA

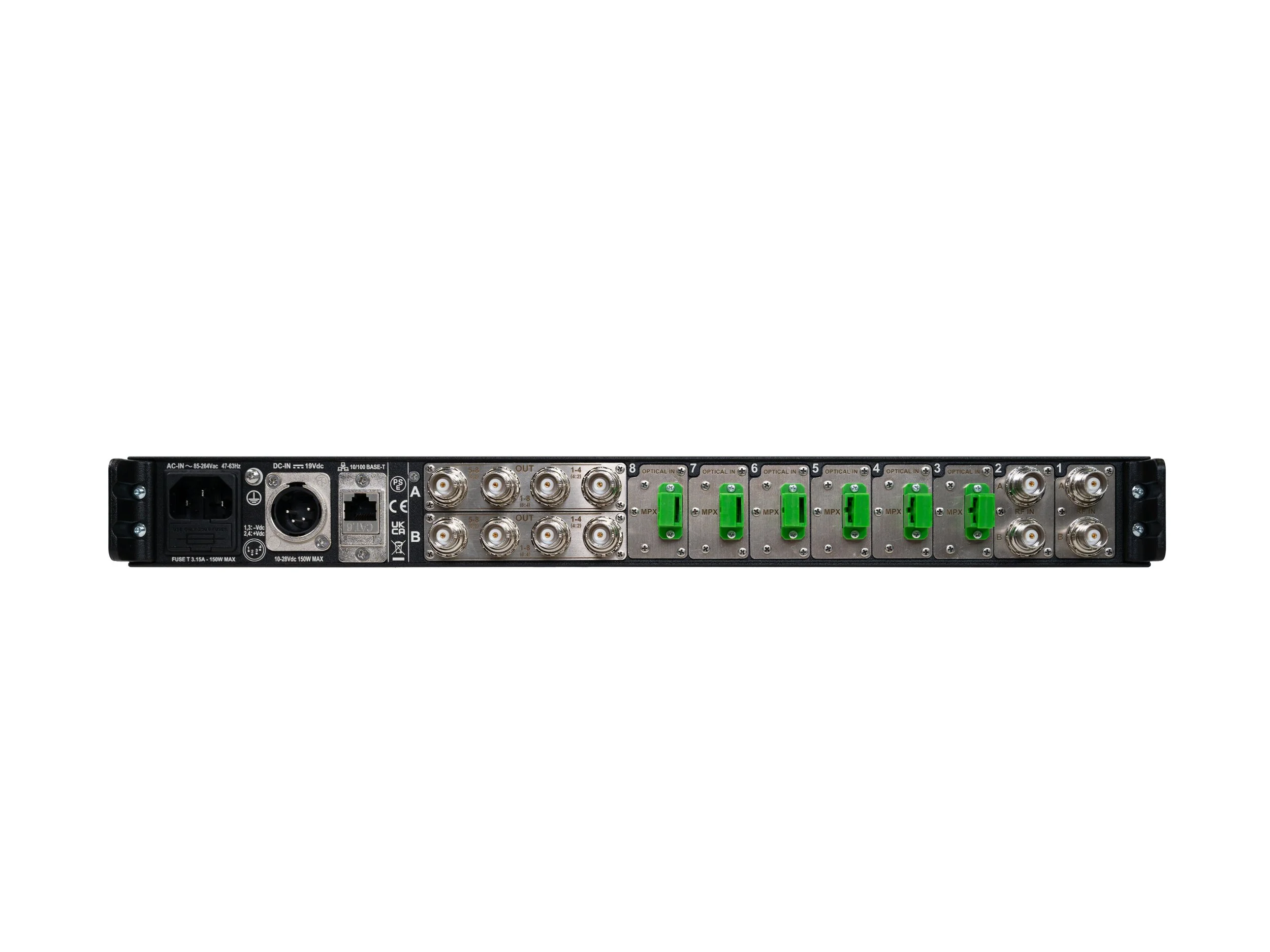

MATFCCFFCCFF 4 Coaxial Inputs and 4 Fiber Inputs (non-multiplexed), i.e. M0 versions for BLF-T2
MATFCCFFFFFF 2 Coaxial Inputs and 6 Fiber Inputs (non-multiplexed), i.e. M0 versions for BLF-T2
MATFCCMMCCMM 4 Coaxial Inputs and 4 Fiber Inputs (multiplexed), i.e. M2 versions for BLF-T2
MATFCCMMMMMM 2 Coaxial Inputs and 6 Fiber Inputs (multiplexed), i.e. M2 versions for BLF-T2
In the above the abbreviations for modules are:
C Coaxial BNC electrical diversity input module
F Non-multiplexed Fiber diversity input module
M Multiplexed Fiber diversity input module
The MATF is designed to centralized RF distribution management integrating fiber and copper endpoint technologies with advanced matrix coupling in one compact frame, which offer a powerful platform that adapts to nearly any installation or workflow. Whether for theater, corporate, broadcast or OB applications, the antenna matrix offers new levels of scalability and remote management.
FEATURES
Extreme wideband system from 170 to 1260 MHz
Programmable combiner up to 8 zones in diversity configuration. Configurable by software in 8 zones into 4 outputs or dual 4 zones into 2 outputs
Built-in spectrum analyzer to check inputs before they are switched into the combined signals or to monitoring combined signal
Remote control of gain and filter thru coaxial cable of Wisycom smart antennas LFA, ADFA and BFA (coaxial modules)

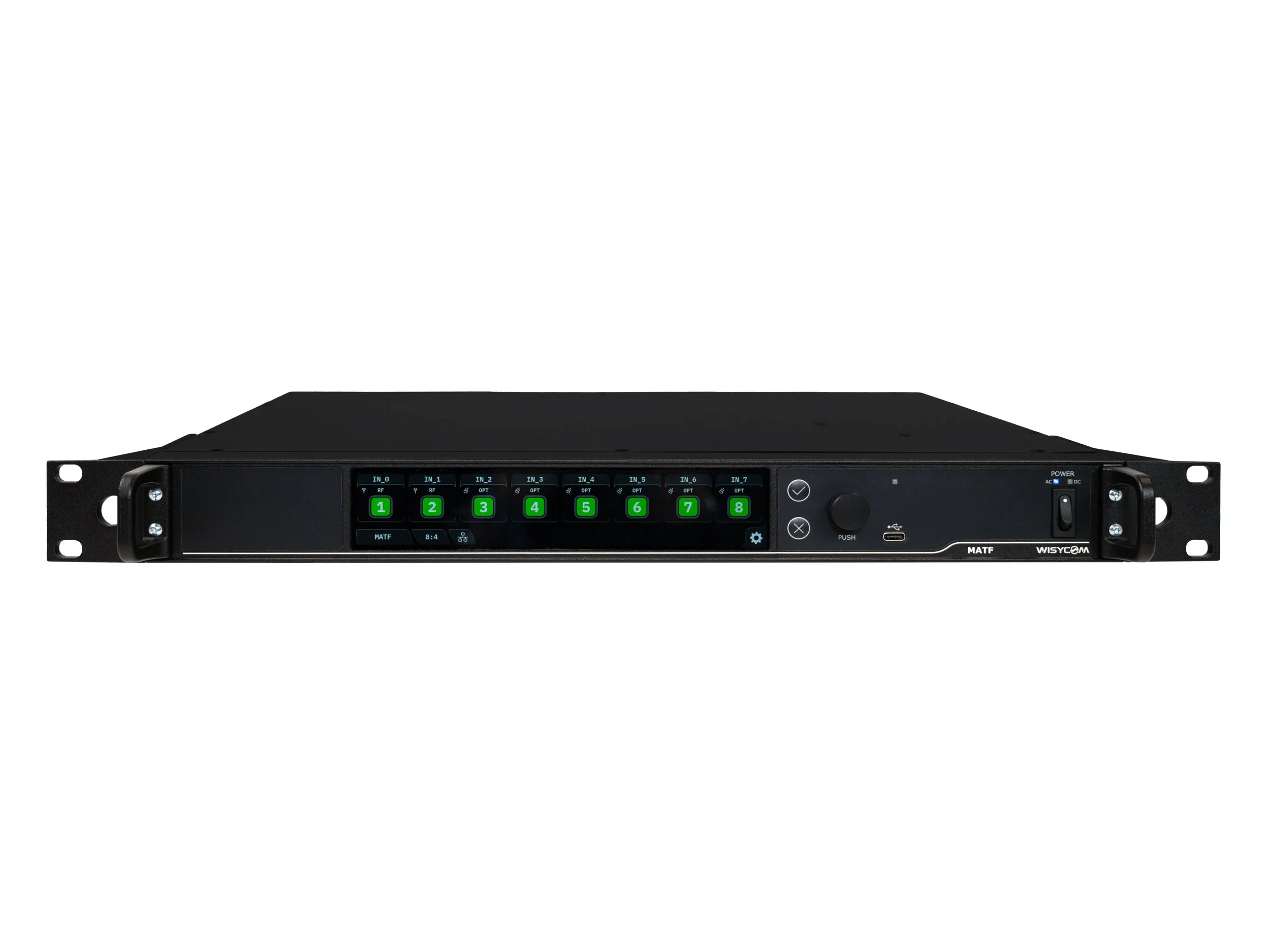

Easy configuration via the large colour touchscreen display
Controllable via ethernet network
Works with Wisycom’s BFL2 M0 and M2 fiber endpoints, ensuring smooth integration with existing setups
Available in four versions to fit a wide range of operational and architectural needs
