Clear-Com FreeSpeak Icon FSIC-BP19 Beltpack
Clear-Com FreeSpeak Icon FSIC-BP19 Beltpack
FreeSpeak Icon Beltpack: 1.9GHz, US with (9) assignable keys, 4 pin XLR-Male,5 pin XLR-Female, 7 pin XLR-Male & BT headset.
Includes BAT80 battery
Mfg. Part #: FSIC-BP19-X4, FSIC-BP19-X5, or FSIC-BP19-X7

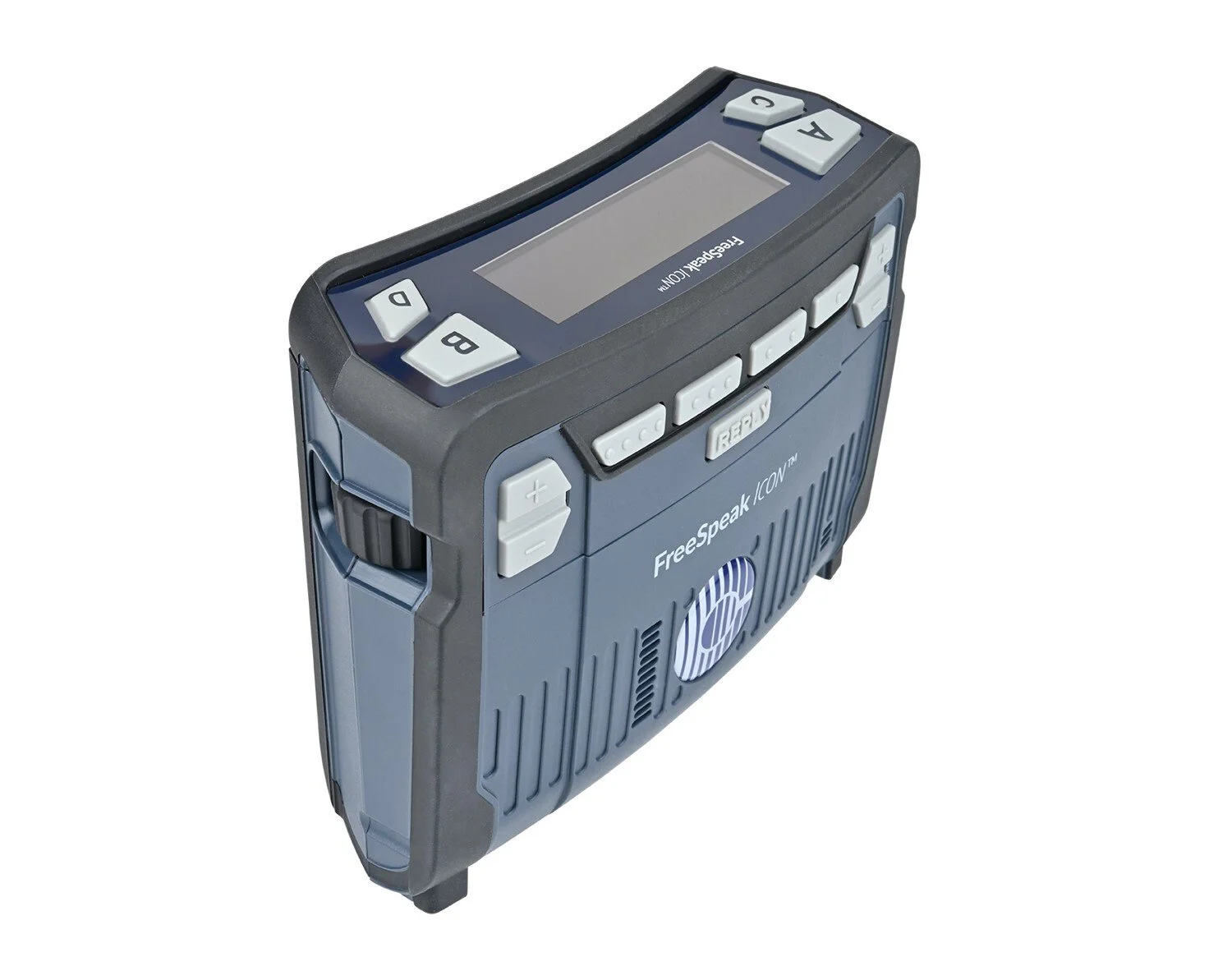

The FSIC-BP19 is a rugged, water-resistant multi-channel beltpack that operates in the 1.9 GHz band connecting to the FreeSpeak Edge Base, Arcadia Central Station, and Eclipse HX frames via E-IPA cards. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, a dedicated master volume control, and a built-in mic and speaker station mode. The beltpack can be deployed on the same wireless network as the existing FreeSpeak II 1.9 GHz beltpack giving users two devices to utilize.
TECHNICAL SPECIFICATIONS
Audio
Audio Bandwidth: 200Hz-7.5KHz
No. of Full-Duplex Audio Paths: Up to 9 keys
Mode of Operation: Full duplex on all routes
Level/Talk Controls: 8 push buttons - A/B/C/D(top buttons) and 1/2/3/4 (front buttons), 1 reply
button, 2 rotary encoders, 2 level up/down controls, and 1 (reprogrammable) main level control
Reply Button: 1
Bluetooth 5.3 Headset Profile
Bluetooth Codec: MSBC using HFP (Hands Free Profile)
Frequency Spectrum
USA: 1920-1930 MHz
Transceiver Range Output Power: 100mW
Connectors

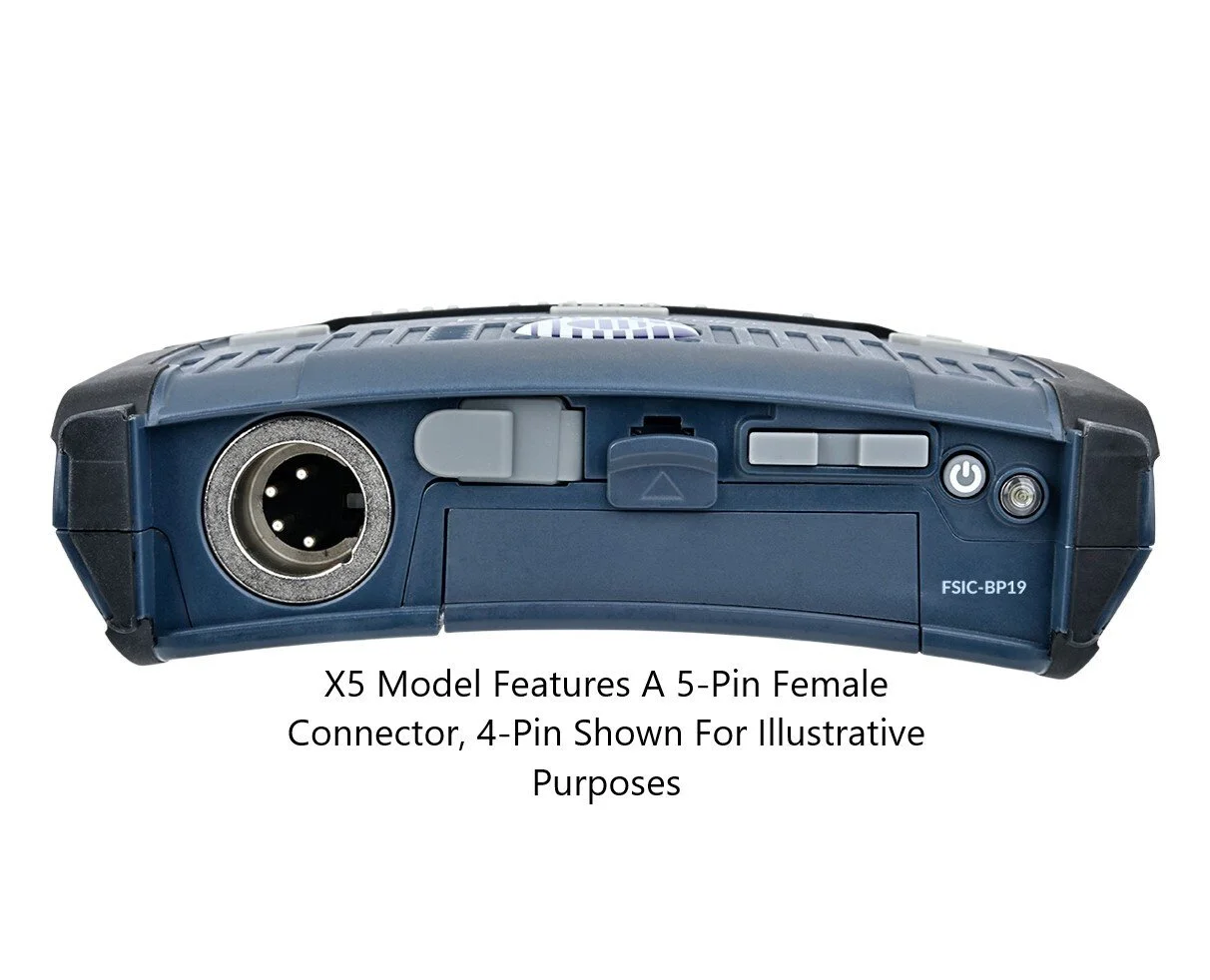

Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Headset Voltage: Maximum of ~+8dBu as set by firmware
Microphone Type: Electret and Dynamic, selectable in beltpack menu
Microphone Voltage: Electret Mic:-40dBu (Mic bias for Electret mode is 4.4V)
Dynamic Mic: -55dBu (Mic bias for Dynamic mode is 1.8V)
Headset Limiter: Selectable from beltpack menu
Distances:
Max Distance (Beltpack To Transceiver, Indoor): ~300-400ft (90-122m)
Max Distance (Beltpack To Transceiver, Outdoor): ~600-800ft (183-450m)
Power
Modulation: GFSK, TDMA frame 10ms Full and Long slot
Output Power: (US) 18-20dBm
Battery: Li-Ion
Battery Charging: Drop-in charger (AC80) or local USB
Battery Life: 18+ hours
DETAILS
Beltpack
Functions with FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
Supports up to 200 beltpacks on a single system (see Capacity Chart for details)

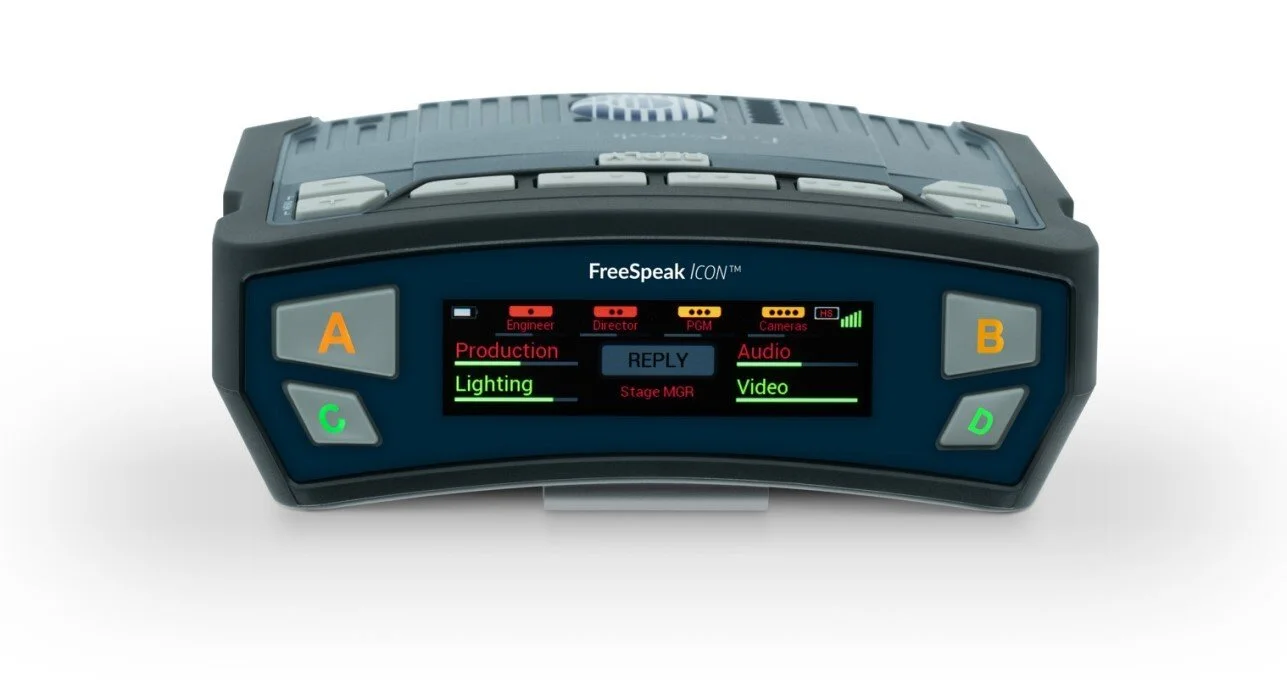

TFT color display (120x480)
4 top buttons with individual level control
5 additional programmable buttons
Rotary controls on both sides and up/down level controls
Main volume control on bottom
BLE (Bluetooth Low Energy) Radio
Supports Bluetooth 5.3
Built-in mic and speaker
Built-in flashlight
Drop-in and USB-C charging
Connectivity to Dante-enabled devices via both Arcadia & Eclipse
Connectivity
1.9 GHz radio frequency
Compatible with FSII E1 and IP transceivers
10 beltpacks per transceiver with the FSII IPT
Low latency audio: < 35ms (70ms beltpack to beltpack)
USB-C port for beltpack pairing and firmware updates and charging
Mechanical
IP54 rating for wet and dusty conditions
Environmental
IP54 water and dust resistance
Operating: 14º-125ºF (-10º-50ºC)
Storage: -22º-150ºF (-30º-70ºC)
Humidity: Between 20% and 90%, Non-Condensing
Dimensions
Tapered design at largest points
(5.31 x 4.27 x 1.92in (WxHxD)
(134.87 x 108.46 x 48.77mm)
Weight
Without Battery: 12.31oz (349g)
With Battery: 16.23oz (460g)
Regulatory Model: 1414
