Wisycom MTP40S Wideband Bodypack Transmitter - B5 Band 1

Wisycom MTP40S Wideband Bodypack Transmitter - B5 Band 1


Audio Masterpiece I-Code: 101165
Mfg. Part#: MTP40S

Add To Cart

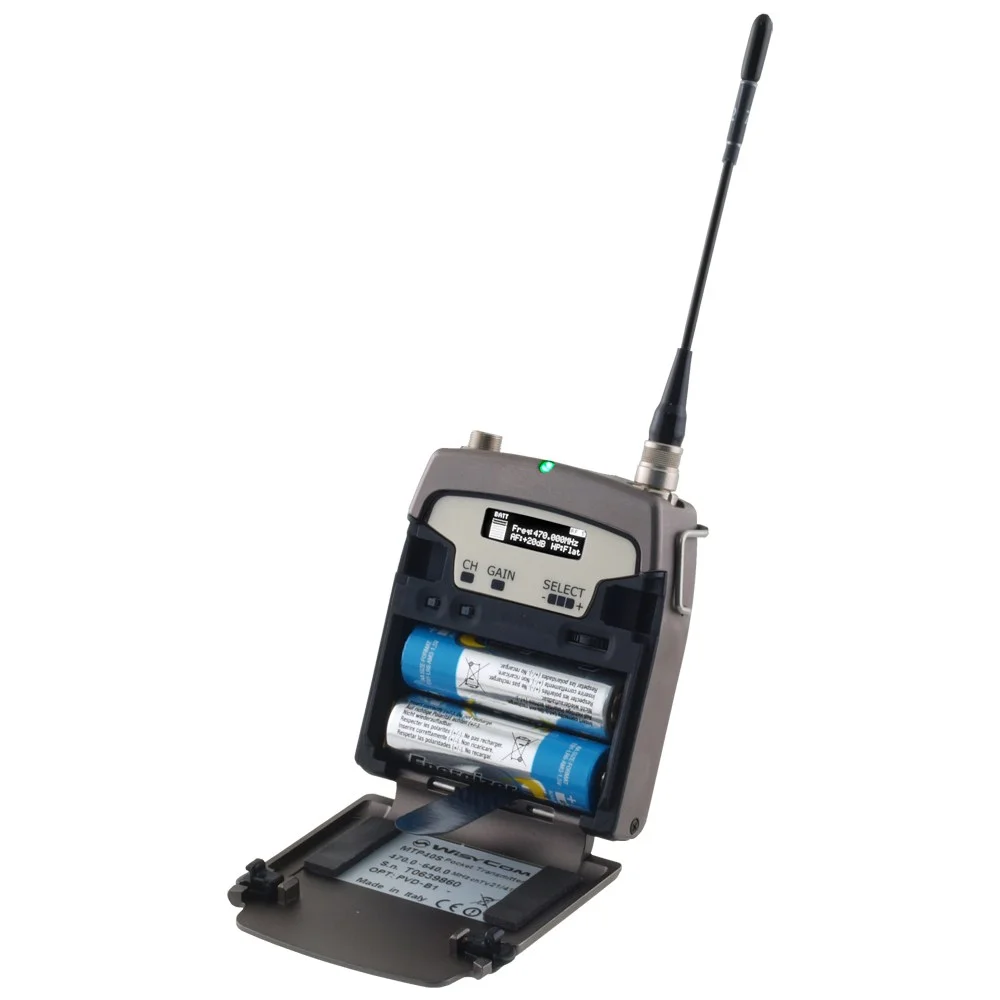

MTP40S is an extremely small and light pocket transmitter especially designed for professional wireless microphone applications.

Very easy and quick to use thanks to its OLED display, dedicated buttons, and joggle selector. MTP40S also benefits from the latest Wisycom RF technology with an enhanced robustness against noise and inter-modulation.

Improved features:
– New white OLED display (128 x 32 pixels)
– Integrated HW limiter


  • Up to 232 MHz bandwidth in 470/798 MHz range (others on request)
  • Input dynamic extension with an integrated HW limiter (30 dB above peak)
  • Enhanced robustness against self-interferences and antenna performances thru a proprietary “intermodulation cancellation” circuit
  • Miniature design with flexible pcb (no connectors) for extended reliability
  • Ultra-light metal alloy body (80g without batteries)
  • User selectable multi-companding systems:
    ENR (noise optimized)
    ENC (voice optimized)
  • Battery: 2 AA Alkaline, rechargeable NiMH or Lithium
  • Autonomy:
    > 7h @ 100mW output power
    > 10h @ 50mW output power
    > 14h @ 10mW output power
  • Infrared interface for management and firmware update
  • Easy and quick to setup thru an Oled display gain/freq button and a joggle selector
  • Extended regulation on Mic input gain: 85dB in 1dB step
  • Max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments
  • 48V phantom power to use wired mic thru the PHA48 accessory
  • Colour:
    BL colour "matt black"
    PV colour “titanium grey”
