Clear-Com FreeSpeak II 1.9GHz Active Antenna, includes AC Power Supply

Clear-Com FreeSpeak II 1.9GHz Active Antenna, includes AC Power Supply

0.00

Call to ask for pricing and availability: 818-495-0935
Audio Masterpiece I-Code: 100728
Mfg. Part #: FSII-TCVR-19-US

Quantity:
Add To Cart

Call to ask for pricing and availability. Available to rent or purchase by phone or email only.

See also: Clear-Com FreeSpeak II Base Station 20BP, Clear-Com FreeSpeak II 1.9GHz Beltpack, Clear-Com FreeSpeak II Splitter


Clear-Com's 1.89GHz-1.93GHz* Band Active Transceiver Antenna allows users to freely roam around a facility while staying connected to the base station. Each Active Antenna can create a coverage zone of up to 1,475 feet. One Active Antenna supports up to 5 beltpacks with the ability of adding more if roaming or more beltpack support is required. Up to 10 remote Active Antennas can be strategically placed to cover a wide area.  Each active transceiver antenna is IP65 rated for water and dust resistance and has a mount for microphone stands, allowing use and placement in virtually any environment. Unique to the FreeSpeak II system, both 1.9GHz and 2.4GHz beltpacks and active transceiver antennas can co-operate on the same system, increasing both the quantity of users as well as the cell roaming area.

ANTENNA FEATURES:

  • Up to 10 Active Antennas can be connected to one system
  • Up to 1,475 ft of coverage area per antenna
  • 1.9GHz and 2.4GHz antennas can co-operate on the same system
  • IP65 rated for water and dust resistance
  • Microphone stand mounting


* exact frequency range depends upon country where approved

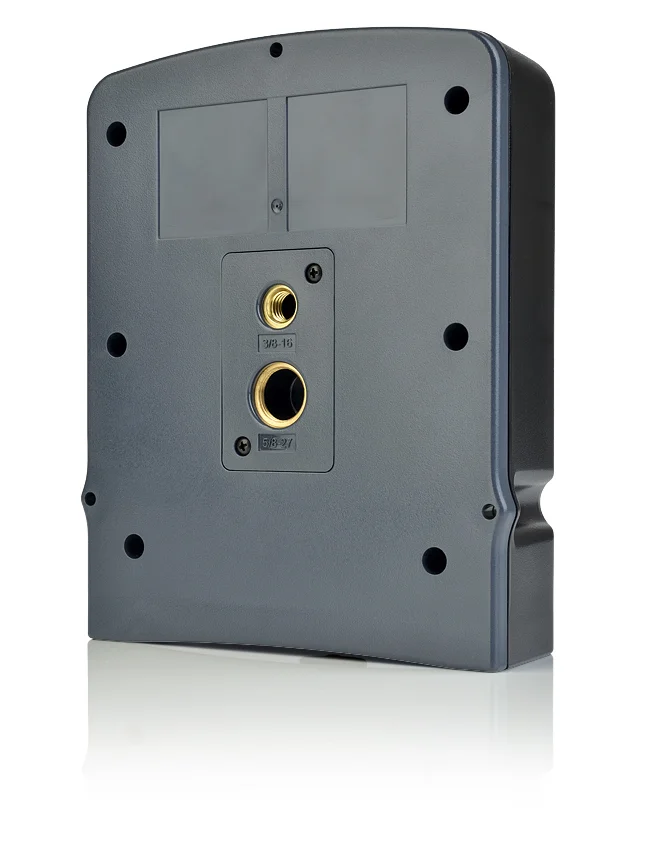

FreeSpeak II 1.9GHz Active Transceiver Antenna

Frequency Spectrum: 1.88-1.93MHz for EU and US Cellular auto roaming technology
Modulation: GFSK, TDMA frame 10ms Full and Long slot
Output power (EU): 18-22dBm, (US): 18-20dBm

Environmental
Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between 20% and 90%, Non-Condensing

Dimensions
6.75 x 5.5 x 2 in (HxWxD)
(173 x 134 x 52 mm)

Weight
7.0 oz (0.19kg)
