Clear-Com FreeSpeak II 1.9 GHz Digital Beltpack (4-Pin Male)

Clear-Com FreeSpeak II 1.9 GHz Digital Beltpack (4-Pin Male)

0.00

Call to ask for pricing and availability: 818-495-0935
Audio Masterpiece I-Code: 100729
Mfg. Part #: FSII-BP19-X4-US

Quantity:
Add To Cart

Call to ask for pricing and availability. Available to rent or purchase by phone or email only.

See also: Clear-Com FreeSpeak II Base Station 20BP, Clear-Com FreeSpeak II Splitter, Clear-Com FreeSpeak II Active Antenna


Clear-Com's five-channel, full-duplex FreeSpeak II digital beltpack was uniquely designed for the rigorous demands of large-scale operations and continuous communication use. Ergonomic form factor, intuitive operation, and a rugged housing make the beltpack ideal for extended use. This beltpack operates in the 1.88 - 1.93 GHz frequency band.

Key Features:

  • Up to five communication routes per beltpack, each with a 5 or 10 character label
  • Four programmable pushbuttons, two rotary encoders and a reply button
  • Menu driven display, which can be partially or completely restricted
  • Secure system – beltpacks are registered to a particular base station or Matrix
  • Internal antenna – no antenna breakage or damage
  • Long battery usage – typically 18 hours of continuous talk time
  • Two battery options – rechargeable Li-Ion cells or disposable Alkaline AA Batteries
  • Drop-in charging port with built-in USB battery and beltpack charging capability
  • Strong metallic beltclip and shoulder strap points
  • Over-the-air beltpack easy registration and regionalization
  • Real-time monitoring of battery per beltpack
  • “Listen Again” audio memory to replay last 15 seconds of audio
  • Technician’s flash light on bottom

FreeSpeak II 1.9GHz Beltpack

Audio
Audio Bandwidth: 200Hz-7.5KHz
No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
Mode of Operation: Full duplex on all routes
Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
Enter/Answer-Back Button: 1

Radio
Frequency Spectrum: 1.88-1.93MHz for EU and US cellular auto roaming technology (frequency allocation varies by country)
Modulation: GFSK, TDMA frame 10ms Full and Long slot
Output power: (EU) 18-22dBm, (US) 18-20dBm
Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m)
Battery: Li-Ion or 3 AA alkaline cells
Battery Charging: Drop-in charger (AC60) or local USB
Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells

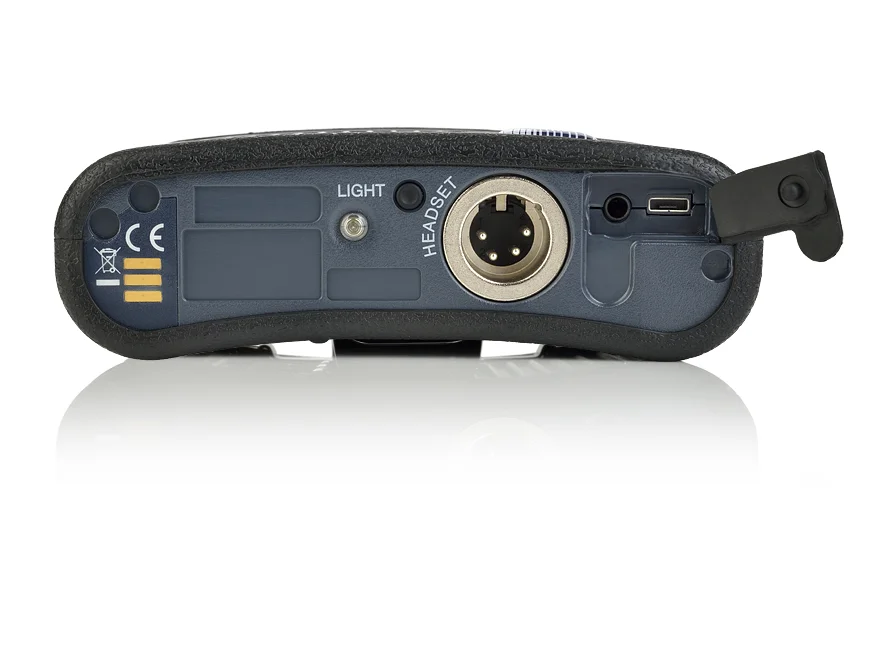

Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
Microphone Type: Electret and Dynamic, selectable in beltpack menu
Headset Limiter: Selectable from beltpack menu

Environmental
IP-65 water and dust resistance
Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between 20% and 90%, Non-Condensing

Dimensions
Tapered design at largest points
3.75 x 5 x 1.5 in (HxWxD)
(97 x 130 x 45 mm)

Weight
9.0 oz (0.4kg) including batteries
